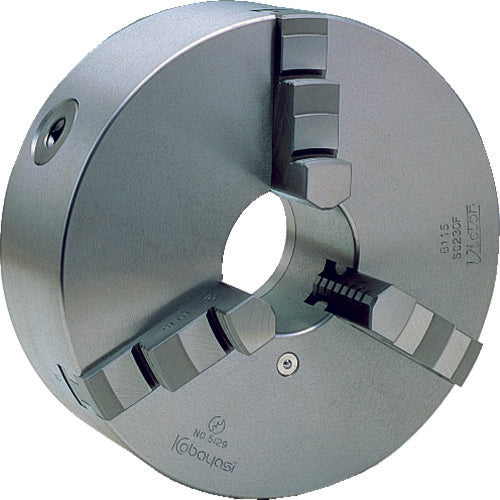

VICTOR scroll chuck SC110F 4 inch 3 jaws integrated jaw
お気に入り機能をご利用いただくにはログインが必要です。
閉じる
【order ID】2391082
【basic item number】SC110F************************6043
【brand name】Kobayashi Iron Works Co.,Ltd.
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】Kobayashi Iron Works Co.,Ltd.
【Country of origin】Japan
【Weight】4.028KG
[Features] ● The claws are heat-treated for high hardness and have excellent durability. ●It is economical because the inner and outer claws can be exchanged.
[Applications] ● Mainly for lathe processing.
[Specifications] - Outer diameter of chuck (mm): 112 - Grasping force (kN): 17 - Grasping outer diameter (mm): 2 - 90 - Grasping inner diameter (mm): 30 - 80
[Specification 2] ●Mounting part conforms to JIS ●Rear mounting with 3 bolts for all sizes ●Integrated hard claw type (with inner and outer claws)
[Material/Finish]
-
[Set contents/accessories]
-
【Note】
-
[Applications] ● Mainly for lathe processing.
[Specifications] - Outer diameter of chuck (mm): 112 - Grasping force (kN): 17 - Grasping outer diameter (mm): 2 - 90 - Grasping inner diameter (mm): 30 - 80
[Specification 2] ●Mounting part conforms to JIS ●Rear mounting with 3 bolts for all sizes ●Integrated hard claw type (with inner and outer claws)
[Material/Finish]
-
[Set contents/accessories]
-
【Note】
-
