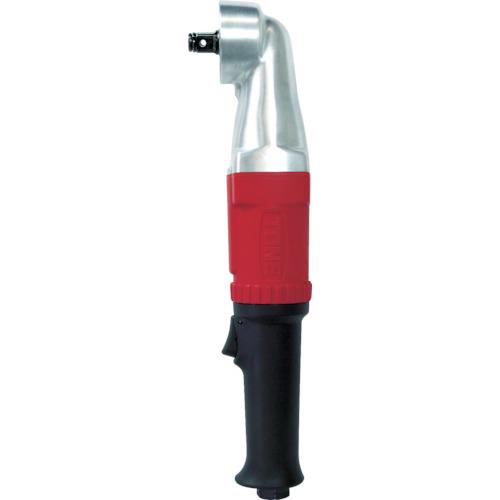

TONE air impact wrench angle type

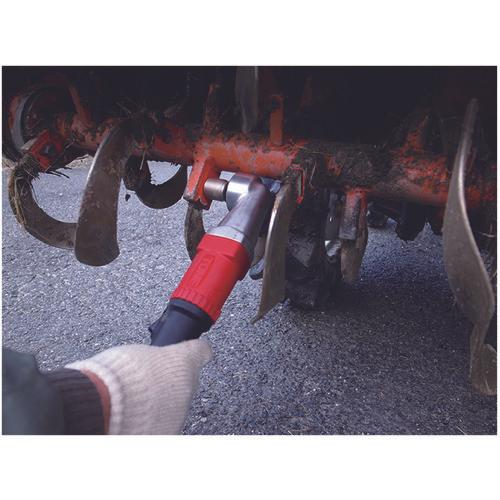

[Features] ● Thin head (height 50 mm, diameter φ55 mm) is ideal for bolt attachment/detachment work in narrow spaces. ●Ideal for replacing claws on tractors and cultivators. ●Compact, lightweight, and high power.

[Applications] ●For changing automobile tires and tightening and loosening nuts and bolts for general work.

[Specifications] ● Capacity bolt diameter (mm): 14 ● Socket insertion angle (mm): 12.7 ● Maximum tightening torque (N m) clockwise rotation: 210 ● No-load rotation speed (min [[-1 power] ]): 4300 ● Air consumption ([[M3]]/min): 0.7 ● Maximum tightening torque (N m) counterclockwise rotation: 250 ● Hose mounting port: Rc1/4 (PT1/4) ● Exhaust: side ●Total Length (mm): 334 ● HAMMER CASTER Type: Big HAMMER CASTER ●Head Diameter (mm): 55 ●Head Height (mm): 50 ●Capacity Bolt Diameter

[Specification 2] Working air pressure: 0.62 MPa

[Material/Finish]
-

[Set contents/accessories]
-

[Caution] ●The tightening torque is a reference value. The torque value changes depending on the conditions.
