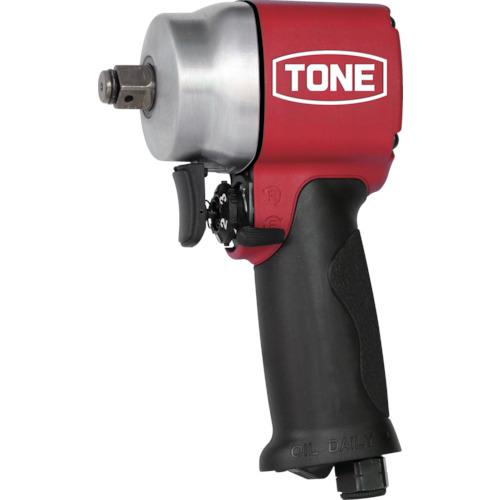

TONE air impact wrench

[Features]●For efficient loosening work, the reverse (left) rotation direction can be set to a higher output than the forward (right) rotation. ●Aluminum alloy HAMMER CASTER case and special reinforced resin body reduce weight. ●It is lightweight and easy to handle with a rotating joint. ●Designed for one-handed operability, settings can be changed so that it can be operated with either the left or right hand. -Although the main body is small, it achieves high power with a big HAMMER CASTER mechanism that increases the force of one hit.

[Applications] ●For changing automobile tires and tightening and loosening nuts and bolts for general work.

[Specifications] ● Capacity bolt diameter (mm): 20 ● Socket insertion angle (mm): 12.7 ● Maximum tightening torque (N m) clockwise rotation: 610 ● Air consumption ([[M3]]/min): 0.84 ● Maximum tightening torque (N・m) counterclockwise rotation: 700 ● Hose mounting port: Rc1/4 (PT1/4) ● No-load rotation speed (min [[-1 power]]) clockwise rotation: 10000 ● Exhaust : Downward No load rotation speed (min [[-1 power]]) counterclockwise rotation: 10000 Total length (mm): 108 HAMMER CASTER type: Big HAMMER CASTER

[Specification 2] Working air pressure: 0.62 MPa

[Material/Finish]
-

[Set Contents/Accessories] ●Plug: R1/4 (PT1/4) ●Instruction manual

[Caution] ●The tightening torque is a reference value. The torque value changes depending on the conditions.
