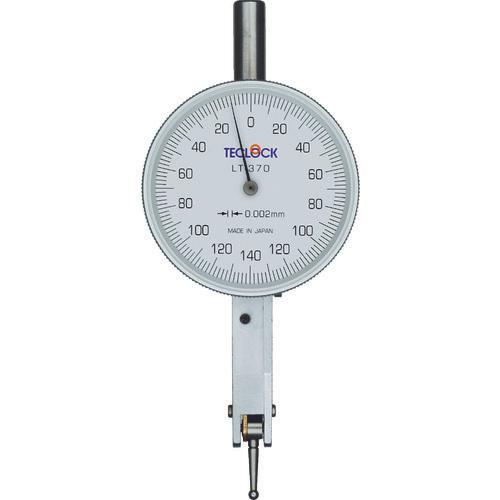

TECLOCK lever test measurement range 0-0.28mm

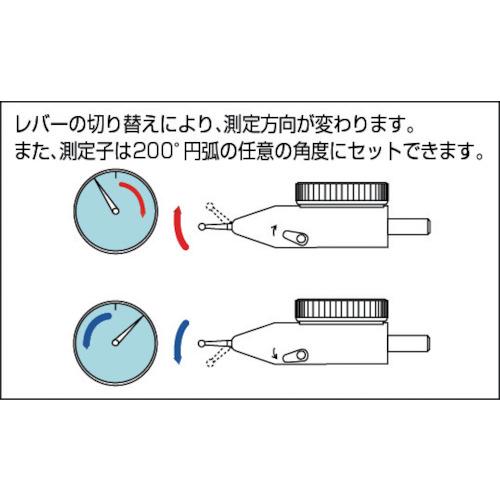

[Features] ● The stylus and pointer are non-magnetic, so they are not affected by magnetism. ●The stylus can be set at an arc angle of 200°.

[Applications] ● For various measurements such as outside, inside, groove, and centering.

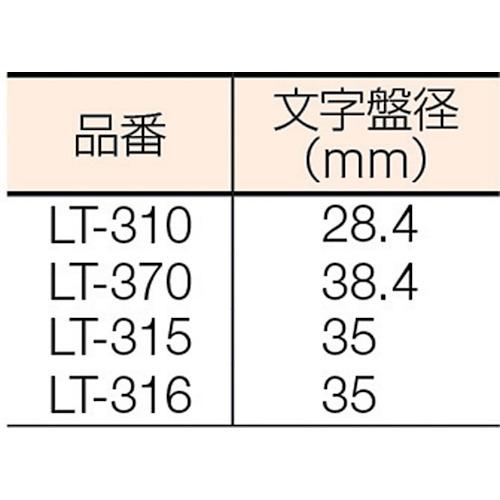

[Specifications] ● Manufacturer code: - ● Measuring range (mm): 0 to 0.28 ● Minimum display (mm): 0.002 ● Scale specification: 0-140-0 ● Mounting shaft diameter (mm): 6 ● Measuring force (N) : 0.4 or less Dial diameter (mm): 38.4

[Specification 2]
-

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
