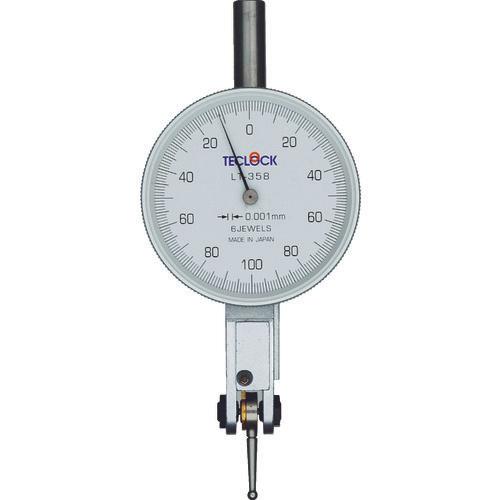

[Features] ● Compared to dial gauges, it has better sensitivity to minute dimensional displacements. ●The stylus and pointer are non-magnetic, so they are not affected by magnetism. ●Auto-clutch mechanism with no switching lever automatically switches the measurement direction between normal and reverse. ●The stylus can be set at an arc angle of 220°.
[Applications] ● For various measurements such as outside, inside, groove, and centering.
[Specifications] ● Manufacturer code: - ● Measuring range (mm): 0 to 0.20 ● Minimum display (mm): 0.001 ● Scale specification: 0-100-0 ● Mounting shaft diameter (mm): 6 ● Measuring force (N) : 0.25 or less -Dial diameter (mm): 38.4 -Probe length (mm): 15.0

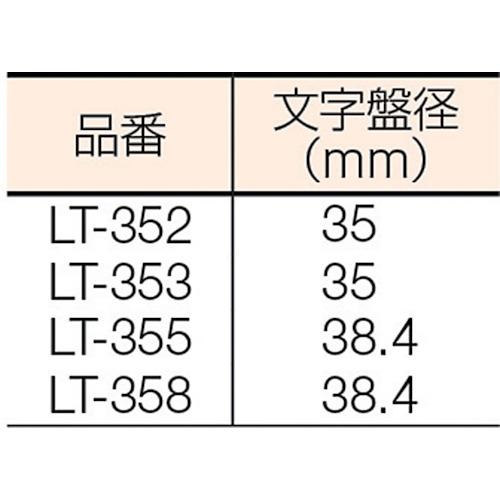

[Specification 2] ●Auto clutch type ●Dial diameter: 35mm
