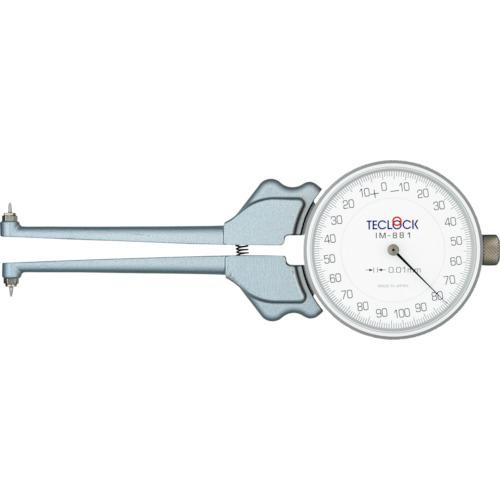

TECLOCK dial caliper gauge

[Features]●By exchanging the attached replacement stylus according to the measurement dimension, comparative measurements can be performed within ±1mm of the set dimension (indication range of 2mm). ●It is convenient to measure the groove diameter of O-rings by improving the replacement stylus. ●The inner diameter of the mold prototype can be measured.

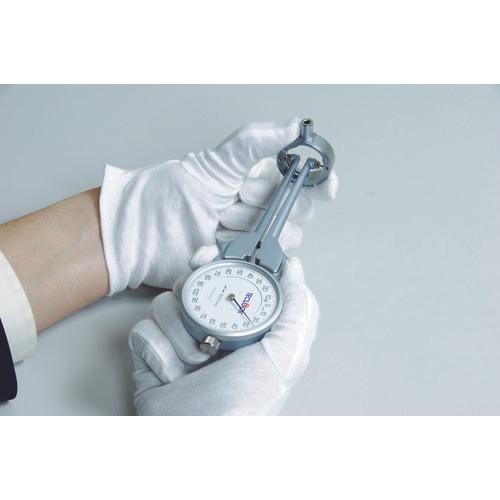

[Applications] ● For comparative measurement of the inner diameter of cylindrical objects and the diameter of grooves at the back.

[Specifications] ●Manufacturer code: - ●Measuring range (mm): 30 to 62 ●Instrumental error (mm): ±0.02 ●Minimum display (mm): 0.01 ●Measurement depth (mm): 75

[Specification 2] ● Indication error: ±20 μm ● Number of replacement stylus points (pieces): 5 ● Indication range: 2 mm

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
