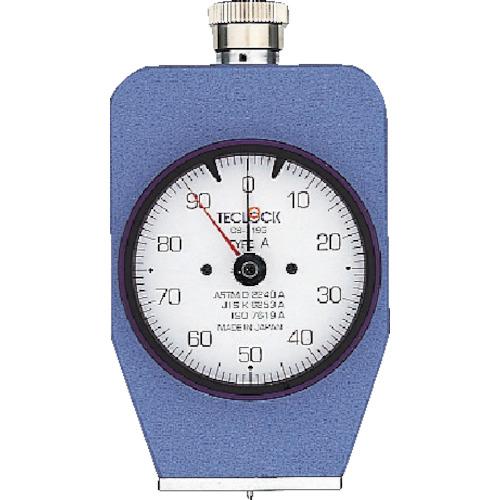

[Features] ● A JIS K 6253 compliant durometer (hardness tester/hardness tester), the most commonly used durometer for general rubber. ●It is a set needle type that holds the maximum value. ●Compliant standards are JIS K 6253, ISO 7619, ISO 868, and ASTM D 2240.
[Use] ●Applicable materials: rubber, tires, rubber hoses, soft plastics, etc.
[Specifications] ● Spring load value (mN): 550 to 8050 ● Push needle shape: 35° conical trapezoid ● Minimum scale (°): 1 ● Measurement range (°): 0 to 100
[Specification 2] - Width x Depth x Height: 60 x 23.5 x 107.7 mm - Type A (Set pointer type) - Set pointer type that holds the maximum value
