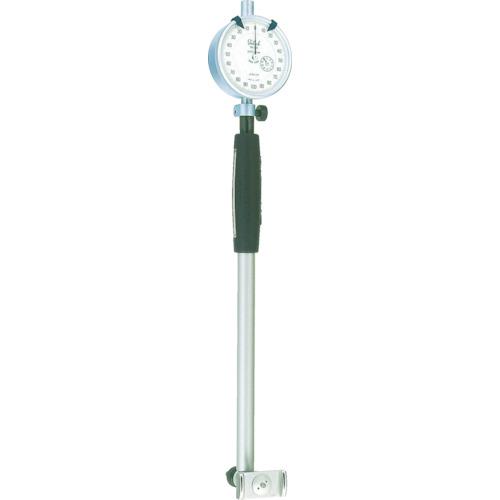

[Features]● The probe tip uses a cemented carbide ball with excellent wear resistance. ●High indication stability is achieved by the integrated guide plate with unique shape.

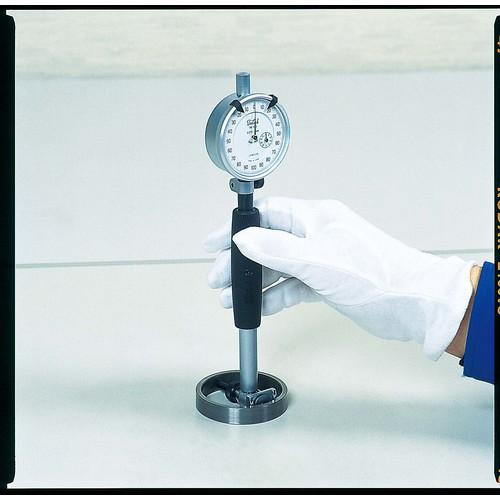

[Applications] ● For inner diameter measurement. ●Measurement of inner diameter from φ50 to φ150mm. ●It is a standard type.

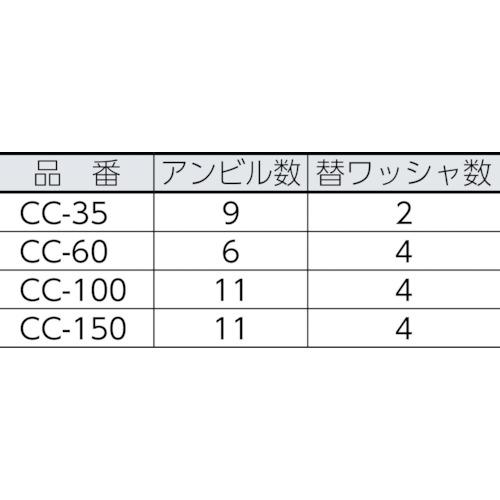

[Specifications] ● Manufacturer code: - ● Measurement range (mm): 50 to 150 ● Wide range accuracy (μm): 5 ● Repeatability accuracy (μm): 2 ● Number of anvils: 11 ● Number of replacement washers: 4 ● Number of replacement washers : 4 Number of replacement washers
