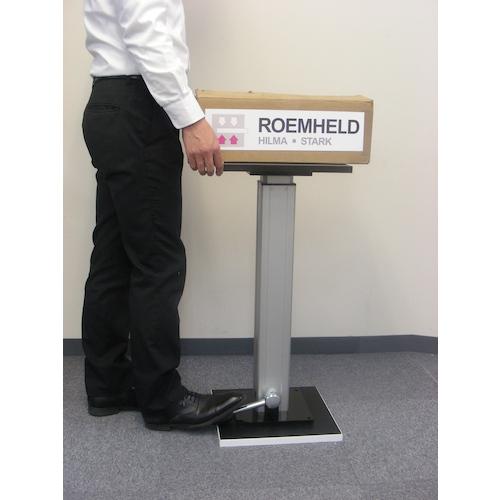

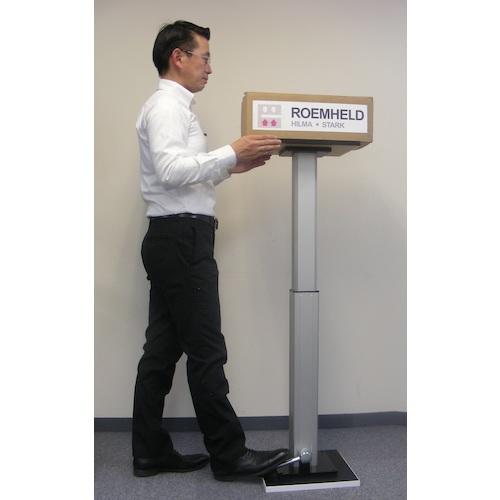

[Features] ●It helps reduce the burden on workers and build an effective assembly process. ● Step on the pedal to ascend, and lightly lift the pedal to descend. ● Helps to ensure the safety of workers and reduce the burden on them during assembly work such as handling heavy objects. ● Easy to handle. ●External energy is not required.
[Use] ●For heavy work. ● For adjusting the height of the workbench. ●For maintenance and inspection. ●For assembly jigs. ●For adjusting the height of the transfer line. ●For packing and transporting products. ●For assembly work. ● For medical equipment, industrial assembly jigs, workbenches, and display stands.
【specification】 - Table dimensions (mm) width x length: 170 x 170 - Table height (mm): 720 - Number of steps (times): 7 times (100mm) ●Fast forwarding device: None - Stroke (mm): 500 Lifting method: Foot pedal type ● Maximum load (kg): 400 - Stroke (mm): 500
[Specification 2] ● Can be combined with other modules ●Maximum load 6000N

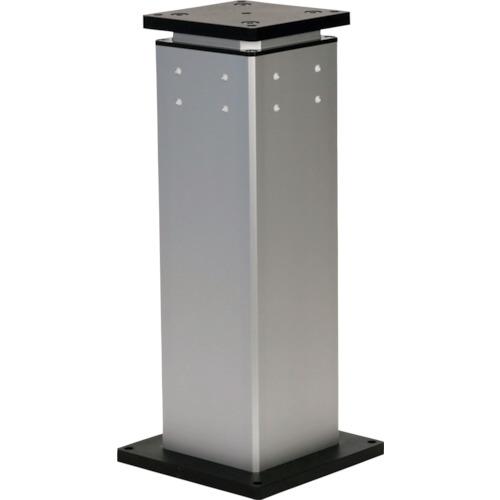

[Material/Finish] -Lift module side: aluminum, aluminite treatment - Top and side plates: aluminum, black aluminite treatment
