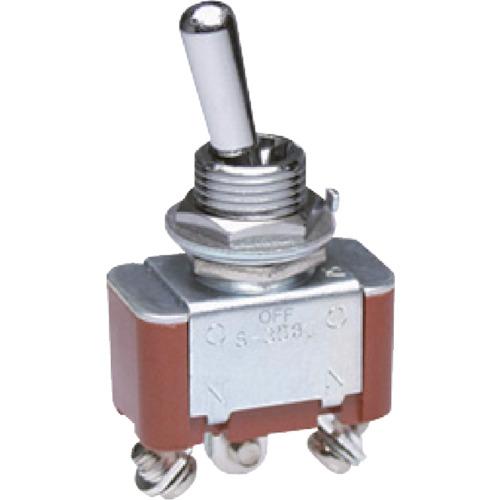

NKK SWITCHES toggle switch screw terminal single pole ON-OFF-ON

[Features] ● A special terminal crimping method. ●Special silver alloy contacts are used.

[Use]
-

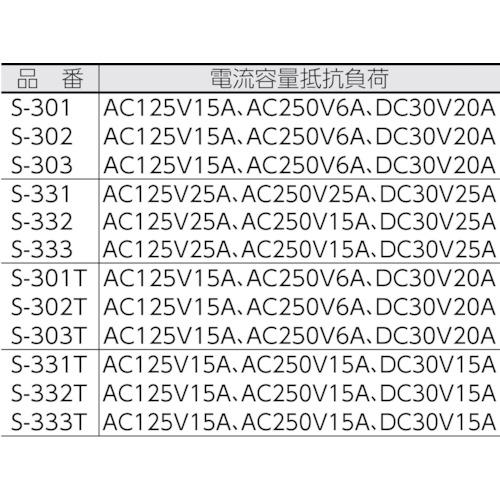

[Specifications] Number of circuits: single pole, double throw (3P) Functional operation: ON-OFF-ON Current capacity resistive load: AC125V 15A, AC250V 6A, DC30V 20A Current capacity induction load AC125V (power factor = 0.6): 10A Bushing Size: M12 Mounting hole dimensions (mm): φ12.5

[Specification 2] ●Operating temperature range: -10 to +70℃ ●Mounting hole dimensions: φ12.5mm ●Motor load: AC125V200W ●Terminal shape: Screw

[Materials/Finish] ● Lever: Copper alloy ● Case: Melamine phenolic resin

[Set contents/accessories]
-

【Note】
-
