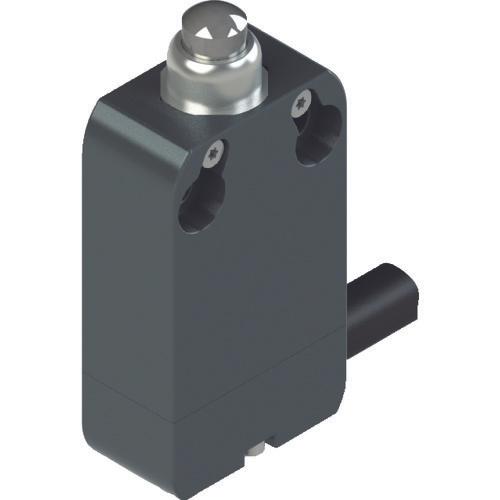

Pizzato pre-wired limit switch NA type B11 plunger 0AB type

[Features]● A limit switch with a cable or connector. ●Suitable for use in narrow spaces. ●The switch body and connector can be separated for flexible use. Equipped with a UV-resistant powder-coated metal housing for excellent durability.

[Use]
-

[Specifications] Actuator shape: Plunger 0AB type Contact configuration: 1NO + 1NC Width (mm): 30 Height (mm): 63 Depth (mm): 16

[Specification 2] ● 1NO+1NC snap action with positive opening mechanism PVC cable (IEC60332-1, oil resistance) 2m included ● Certification standards: IMQ, UL, CCC, EAC ● Low voltage directive, EMC directive ● Degree of protection: IP67, IP69K

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
