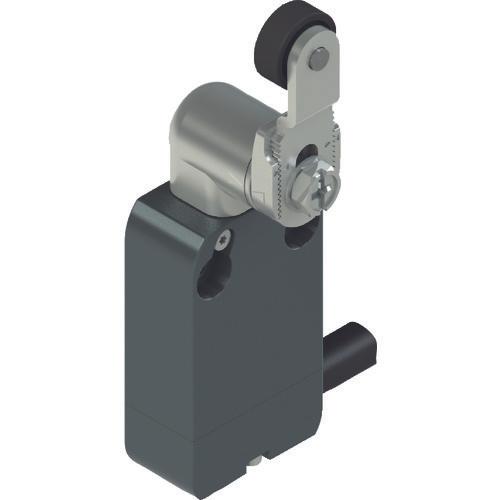

Pizzato pre-wired limit switch NA type B02 swivel lever roller 14mm2KC type

[Features]● A limit switch with a cable or connector. ●Suitable for use in narrow spaces. ●The switch body and connector can be separated for flexible use. Equipped with a UV-resistant powder-coated metal housing for excellent durability (protection grade: IP67, IP69K).

[Use]
-

[Specifications] ● Actuator shape: Turning lever/roller φ14mm 2KC type ● Contact configuration: 2NC ● Width (mm): 30 ● Height (mm): 95 ● Depth (mm): 16

[Specification 2] ●2NC snap action with positive opening mechanism PVC cable (IEC60332-1, oil resistance) 2m included ●Certification standards: IMQ, UL, CCC, EAC ●Low voltage directive, EMC directive ●Protection grade: IP67, IP69K

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
