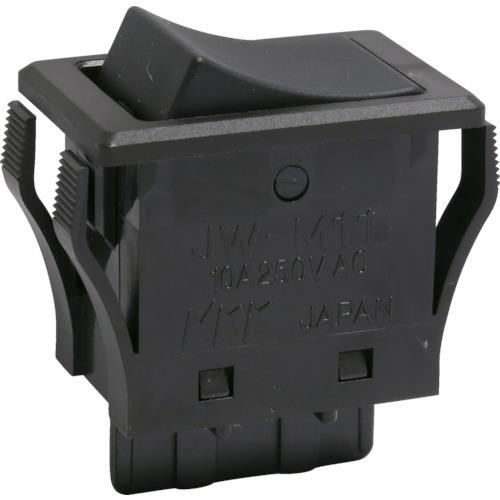

NKK SWITCHES rocker switch JW-M series single pole ON-OFF

[Features] ● Compact rocker switch. ●Inrush characteristic is 78A.

[Applications] ●Power supply for OA equipment, lighting equipment, etc.

[Specifications] - Number of circuits: Single pole, single throw (2P) - Functional operation: ON-OFF - Mounting panel thickness (mm): 1 to 4 - Mounting hole dimensions (mm): 24 x 15.4 - Contact resistance: 10 mΩ or less ( At DC5V 1A) Insulation resistance: DC500V, 1000MΩ or more Rating: AC125V-10A, AC250V-10A

[Specification 2] ● Mounting hole dimensions: 24 x 15.4 mm ● Mounting panel thickness: 1 to 4 mm ● Terminal part shape: Solder terminal (can also be used as tab terminal #110)

[Material/Finish] Button: Polyphenylene ether resin Housing: Polyamide resin

[Set contents/accessories]
-

【Note】
-
