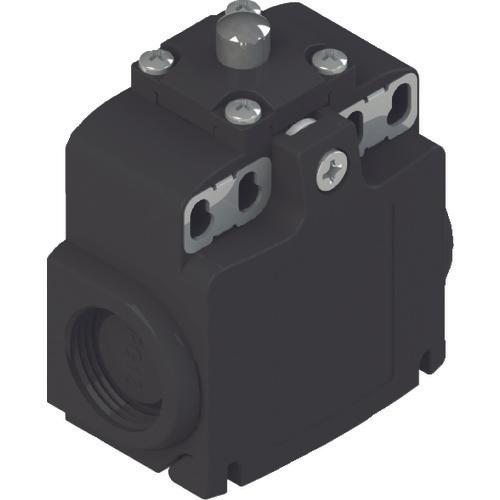

Pizzato limit switch FX type 6 plunger 01 type

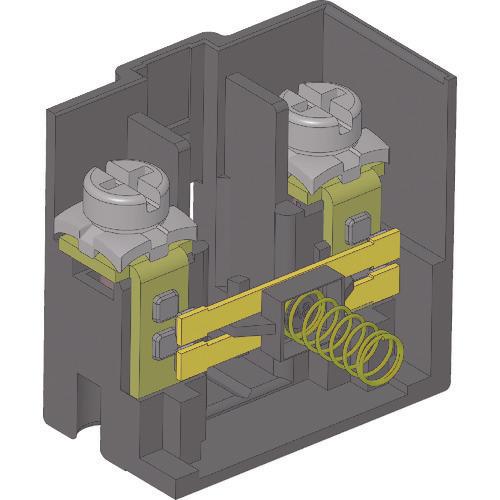

[Features]● Equipped with a glass fiber reinforced technopolymer housing, this limit switch has excellent flame resistance and shock absorption. ●With a twin bridge (2 lines) mechanism, even if the contact on one side is insulated due to rust or deterioration, the contact on the other side is energized. ●There are two conduit openings for easy wiring and positioning. ●Double insulation structure.

[Use]
-

[Specifications] Actuator shape: Plunger 01 type Contact configuration: 1NO + 1NC Width (mm): 58 Height (mm): 66.4 Depth (mm): 31.7

[Specification 2] ●1NO+1NC slow action with positive opening mechanism ●Certification standards: IMQ, UL, CCC, EAC ●Conduit shape (PG13.5) ●Low voltage directive, EMC directive ●Protection grade: IP67

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
