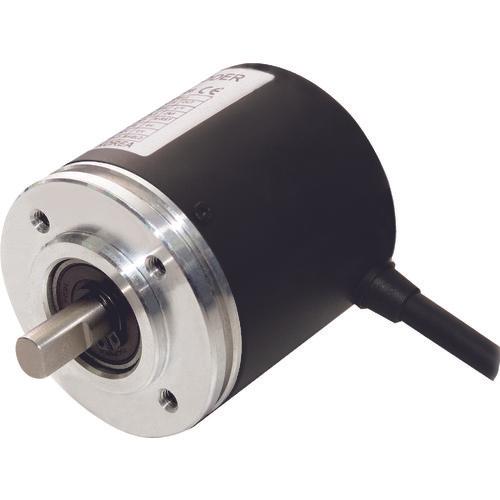

Autonics multi-turn absolute rotary encoder

[Features] ● There is a resolution of 23 bits (8388608 divisions) in total, 10 bits for single rotation (1024 divisions) and 13 bits for multiple rotations (8192 rotations).

[Use] ● For drill position control of NC lathes and table angle control of machine tools. ●For parking equipment (car turntable control), etc.

[Specifications] ● Detection method: Optical ● Output format: NPN open collector output ● Length (mm): 91 ● Width (mm): 50 ● Height (mm): 50 ● Connection: Radial cable

[Specification 2] ●Power supply voltage: DC12-24V ●Current consumption: 100mA or less ●Shaft outer diameter: φ8mm ●Cord length: 2m ●Protection grade: IP64 (dust and oil proof) ●CE 0

[Material/Finish]
-

[Set Contents/Accessories] ● Coupling ● Bracket

【Note】
-
