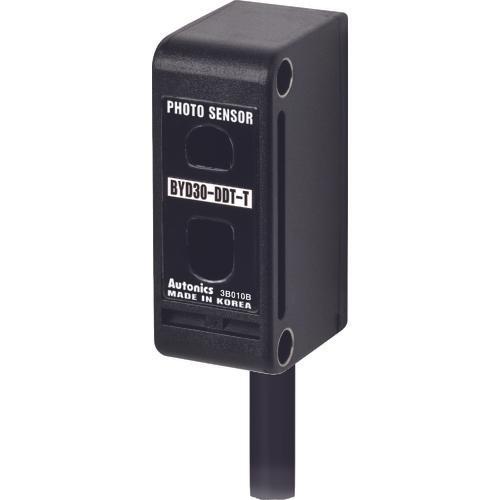

Autonics compact photoelectric sensor

[Features] ●Compact and can be installed in narrow spaces. ●Built-in overcurrent protection circuit and power supply reverse connection protection circuit.

[Applications] ●For product detection on product transfer lines.

[Specifications] ● Detection method: Limited distance reflective type ● Detection distance (m): 0.03 ● Output format: NPN open collector output ● Length (mm): 18 ● Width (mm): 12 ● Height (mm): 32

[Specification 2] ● Sensing object: opaque, translucent ● Power supply voltage: 12-24 VDC ● Current consumption: 35 mA or less ● Degree of protection: IP64 (IEC standard) ● Cord length: 2 m ● Indicator light: Red LED operation indication ● Operation Mode: Light-on fixed ● Sensitivity adjustment fixed type ● CE ● With off-delay timer (delay time: 0.1 to 2 seconds or less)

[Material/Finish] Case: ABS Sensing surface: Acrylic Bracket: SPCC Bolt: SCM Nut: SCM

[Set contents/accessories]
-

【Note】
-
