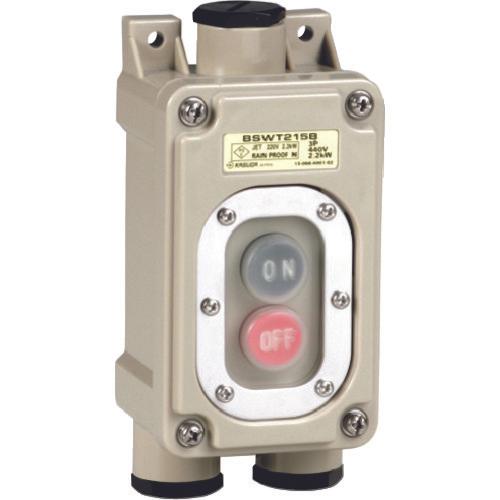

KASUGA Power Switch BS WT215B3
お気に入り機能をご利用いただくにはログインが必要です。
閉じる
【order ID】8500133
【basic item number】BSWT215B3*********************2315
【brand name】KASUGA ELECTRIC WORKS LTD.
【minimum order quantity】1Pcs
【packages】1
【manufacturer name】KASUGA ELECTRIC WORKS LTD.
【Country of origin】Japan
【Weight】297G
[Features] ● Rainproof type. ●Protective structure IP65 (JIS C 0920). ●Compliant with the Electrical Appliance and Material Safety Law.
[Applications] ● Power push button switch ON/OFF.
[Specifications] ●Button characters: ON, OFF ●Rating (A): 15 ●Maximum applicable motor capacity: 3-phase 200/220V-2.2kW ●Length (mm): 66 ●Width (mm): 151 ●Height ( mm): 56.6 ●Terminal screw: M4 ●Applicable wire ([[MM2]]): 2
[Specification 2] Terminal screw M4
[Material/Finish] ●Case: ABS resin (equivalent to 5Y7/1) ●Packing: Elastomer
[Set contents/accessories]
-
【Note】
-
[Applications] ● Power push button switch ON/OFF.
[Specifications] ●Button characters: ON, OFF ●Rating (A): 15 ●Maximum applicable motor capacity: 3-phase 200/220V-2.2kW ●Length (mm): 66 ●Width (mm): 151 ●Height ( mm): 56.6 ●Terminal screw: M4 ●Applicable wire ([[MM2]]): 2
[Specification 2] Terminal screw M4
[Material/Finish] ●Case: ABS resin (equivalent to 5Y7/1) ●Packing: Elastomer
[Set contents/accessories]
-
【Note】
-
