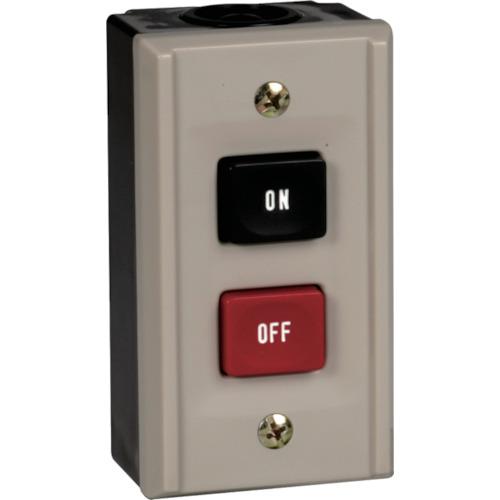

KASUGA Operation Push Button Switch BS H222

[Features] ● A push button switch for operating the electromagnetic switch. ●Compliant with the Electrical Appliance and Material Safety Law.

[Applications] ● ON/OFF push button switch for electromagnetic switch operation.

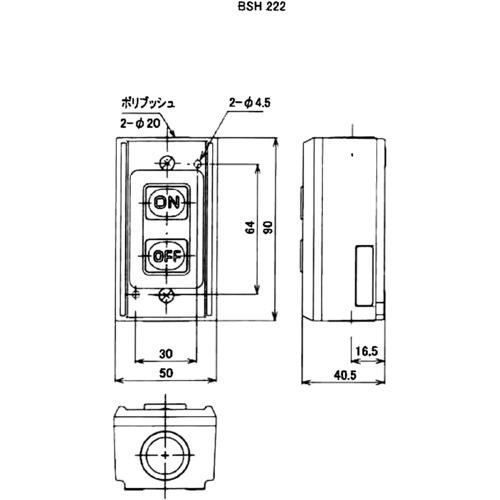

[Specifications] - Button text: ON, OFF - Length (mm): 50 - Width (mm): 90 - Height (mm): 40.5

[Specification 2] ● Rating: AC250V-5A ● Terminal screw M3.5

[Material/Finish] ●Case: ABS resin (black) ●Cover: ABS resin (equivalent to 5Y7/1)

[Set contents/accessories]
-

【Note】
-
