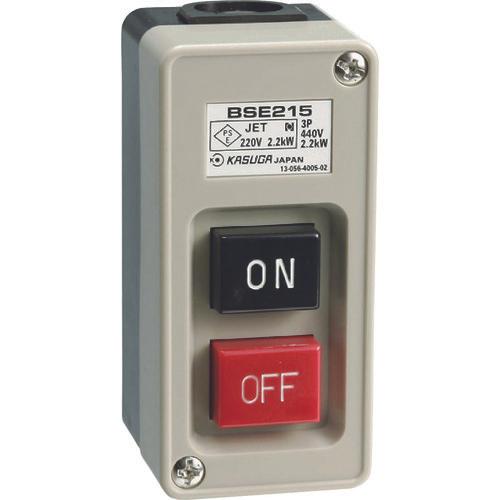

KASUGA Power Switch BS E2153

[Features]● Since the case is made of plastic, it is a type that does not need to be grounded. ●Compliant with the Electrical Appliance and Material Safety Law.

[Applications] ● Power push button switch ON/OFF.

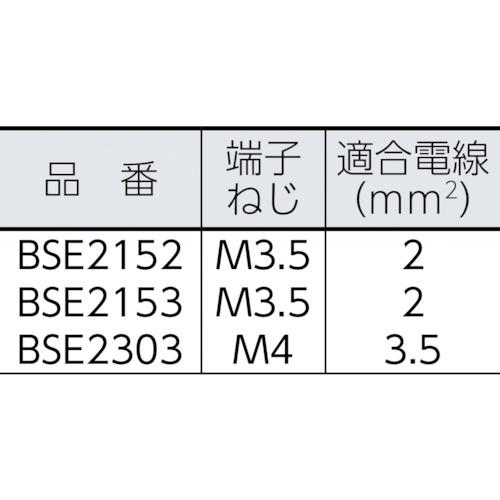

[Specifications] ●Button characters: ON, OFF ●Rating (A): 15 ●Maximum applicable motor capacity: 3-phase 200/220V-2.2kW ●Length (mm): 38 ●Width (mm): 83 ●Height ( mm): 41.5 ●Terminal screw: M3.5 ●Applicable wire ([[MM2]]): 2 ●Terminal screw M3.5

[Specification 2]
-

[Material/Finish] ●Case: ABS resin (black) ●Cover: ABS resin (equivalent to 5Y7/1)

[Set contents/accessories]
-

【Note】
-
