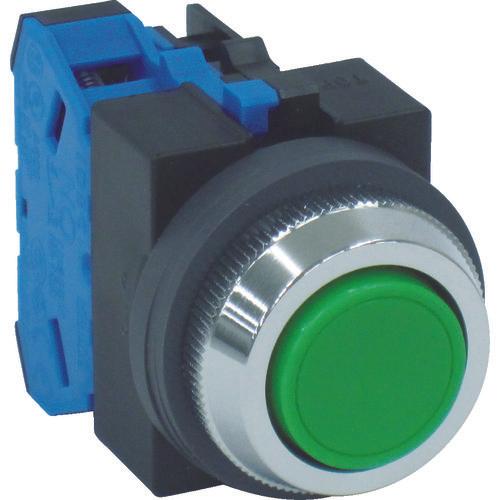

IDEC Flat Push Button Switch Green

[Features]● Equipped with the same contact block for all φ22, 25, and 30 mm control UNIT models to improve convenience in terms of safety and labor savings. ●Enclosure structure: IP65 (IEC60529) ●No terminal cover required. ●Significantly reduces wiring man-hours for round crimp terminals. ● Jet-proof ● Oil-proof type. (NECA CA4520) ● UL, CSA, CCC certified and EN standard compliant product.

[Use]
-

[Specifications] - Operation: momentary - Contact configuration: 1a - Button color: green

[Specification 2] ● Protection grade: IP65 (IEC60529) ● Panel cut size: 25 mm

[Material/Finish] ●Body: Polyamide ●Operation part (lens): Polyacetal ●Terminal part: Copper ●Ring: Zinc die-cast

[Set contents/accessories]
-

【Note】
-
