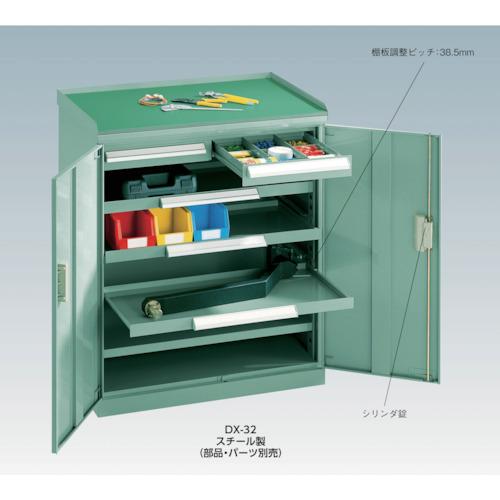

[Features] ●Convenient for storage and management of tools. ●The position of the slide shelf can be changed at a pitch of 38.5 mm. ●You can work on the top plate. The top plate is equipped with a spill prevention. ●An earthquake-resistant latch mechanism prevents stored items from popping out due to earthquakes, etc.
[Use] -

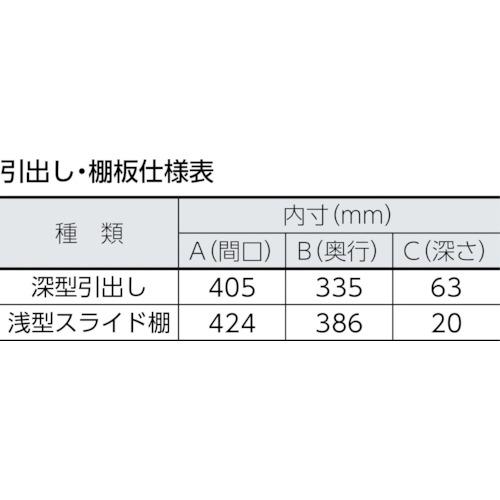

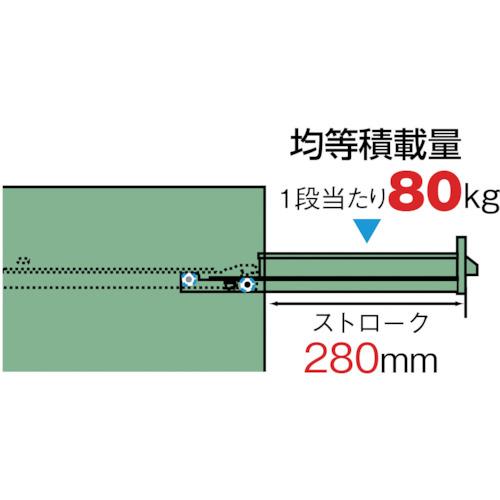

【specification】 - Frontage (mm): 501 - Depth (mm): 551 - Height (mm): 1045 - Maximum load (kg / unit): 200 - Shelf board pitch (mm): 38.5 - Accessories: 1 shelf board Color: green -Deep drawer: 1 - Middle shelf board dimensions (mm) frontage x depth x height: 450 x 450 x 30 - Slide shelf (step): 4 - Uniform loading capacity (kg / stage): 80 - Compatible base: LVE-C (caster type, sold separately) LVE-B (adjuster type, sold separately) -Shelf board (sheet): 1 ●Shelf board adjustment pitch: 38.5mm ●Drawer inner dimensions (mm) Frontage x Depth x Depth

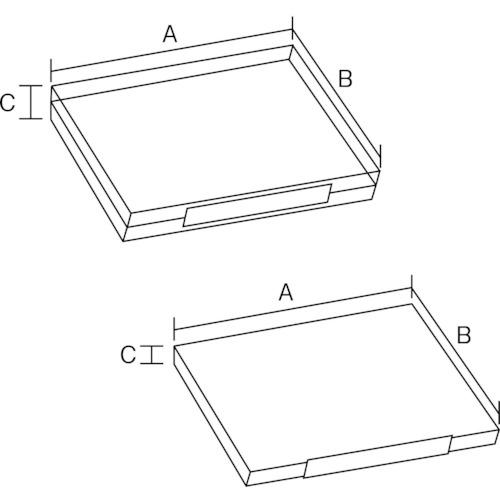

[Specification 2] -Melamine decorative top plate (with anti-spill) - Cylinder lock (with 2 keys) - Outer dimensions of spill prevention: Frontage 510 x Depth 558 x Height 45mm Single open type ●Cylinder lock - Slide shelf: internal dimensions 424 × 386 × 20 mm
[Material/Finish] ●Steel A door: Steel
[Set contents/accessories] - Heading card: 1 card per drawer and slide shelf -Partition plate: 2 partitions per deep drawer, 6 dividers
【Note】 ●Because it is handed over on the vehicle, unloading is required by the customer.
