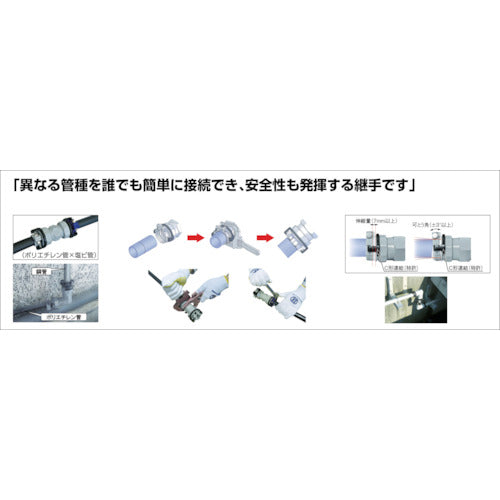

[Features]● No need to disassemble, just insert and tighten the tube to connect. ●It is most suitable for repair work because it can be slid on the pipe. ●It has a stretchable function and can absorb external force. ●Different types of pipes can be connected with simple construction.
[Applications] ● Water supply piping, drainage piping, seawater piping, air piping, etc.
[Specifications] ● Nominal diameter (mm): 13 x 13 ● L (mm): 108 ● L1 (mm): 44 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (°C): 0 to 45 ● Nominal diameter : P13 x V13 A (mm): 85 L0 (mm): 144 L1 (mm) minimum: 10 L1 (mm) maximum: 44
[Specification 2] ● Working temperature: 0 to 45°C ● Working pressure: 1 MPa
