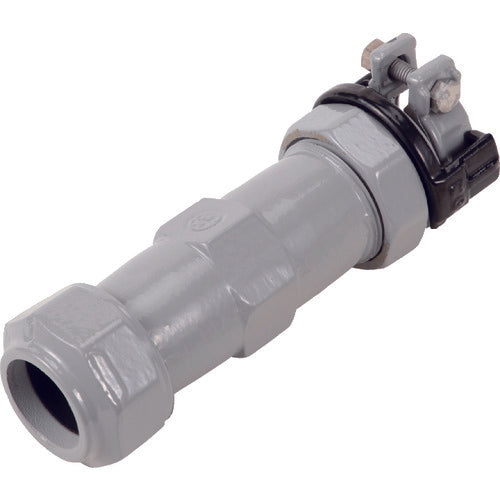

[Features] ● Pipes can be connected easily and quickly. ●Installation is completed simply by inserting and tightening the pipe. ●It has a stretchable function and can absorb external force. ●Can be easily removed and reapplied, making it suitable as a repair material. ●Different type pipe connection with lead pipe can be done by simple construction. ● SKX has a stretchable function and can absorb external force. ●Suitable as a repair material for lead pipes. *Please use Neo SK lead pipe in-core (sold separately) on the lead pipe side. *Please check the type of lead pipe (Type 1, Type 2) before connecting.
[Applications] ● Water supply piping, drainage piping, seawater piping, air piping, etc.

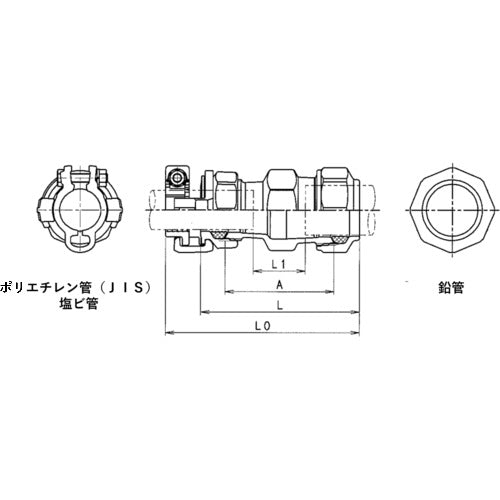

[Specifications] ● Nominal diameter (mm): 13 x 13 ● L (mm): 104 ● L1 (mm): 41 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (°C): 0 to 45 ● Nominal diameter : P13 x L13 A (mm): 80 L0 (mm): 122 L1 (mm) minimum: 10 L1 (mm) maximum: 41
[Specification 2] ● Working temperature: 0 to 45°C ● Working pressure: 1 MPa
[Material/Finish] Vermicular cast iron
[Set contents/accessories] -
[Caution] ● Please use Neo SK lead pipe in-core (sold separately) on the lead pipe side. ●Check the type of lead pipe (type 1 or type 2) before connecting.
