[Features]● No need to disassemble, just insert and tighten the tube to connect. ●It is most suitable for repair work because it can be slid on the pipe. ●It has a stretchable function and can absorb external force. ● Easy to remove and re-install, suitable for temporary piping. ●It comes with a 20A plug that can be removed. Suitable as a hydrostatic test fixture.
[Applications] ● Water supply piping, drainage piping, seawater piping, air piping, etc.

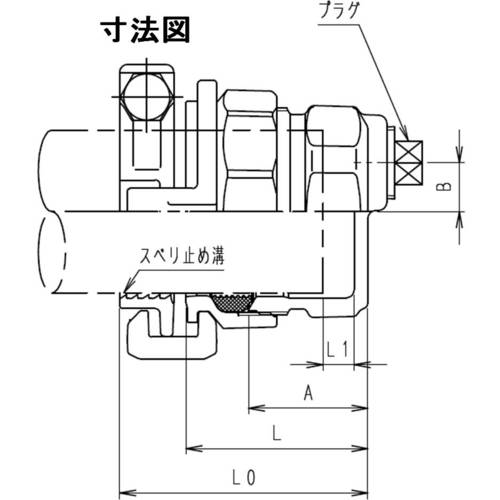

[Specifications] ● Nominal diameter (mm): 50 ● L (mm): 63 ● L1 (mm): 7 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (°C): 0 to 45 ● Nominal diameter: P50 - A (mm): 44 - L0 (mm): 87 - Female screw dimension: 3/4
[Specification 2] ● Working temperature: 0 to 45°C ● Working pressure: 1 MPa
