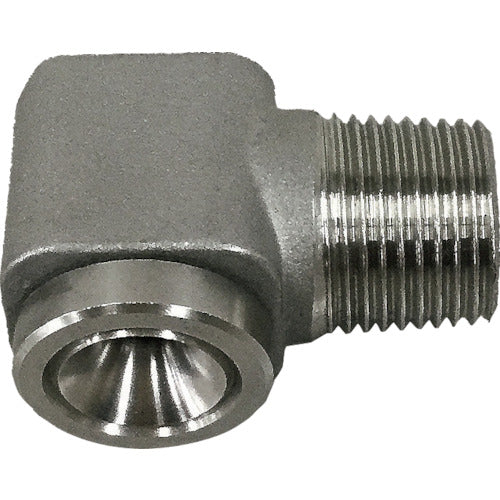

IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series Stainless Steel 303 Screw 3/8 Male 85° 3/8MAJP16S303 IKEUCHI
IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series Stainless Steel 303 Screw 3/8 Male 85° 3/8MAJP16S303 IKEUCHI
  • Load image into gallery viewer, IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series Stainless Steel 303 Screw 3/8 Male 85° 3/8MAJP16S303 IKEUCHI
  • Load image into gallery viewer, IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series Stainless Steel 303 Screw 3/8 Male 85° 3/8MAJP16S303 IKEUCHI

IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series Stainless Steel 303 Screw 3/8 Male 85° 3/8MAJP16S303 IKEUCHI

[Features]
It is a full cone nozzle with a circular spray pattern and even flow distribution.
This nozzle does not use a swirl element and instead atomizes the liquid through inflow collision, so the diameter through which foreign objects can pass is extremely large.
The liquid is sprayed perpendicular to the flow direction.

[Applications]
For applications where nozzle clogging is a particular concern, such as when using circulating water.
For spraying to clean equipment and to eliminate foam.

【specification】
Spray angle (°): 85 (at 0.2MPa)
Spray amount (L/min): 16.0 (at 0.2MPa)
Screw size: R3/8
Screw dimensions: R3/8
Dimensions (mm) (total length x hexagonal width): 36 x 20

[Specification 2]
Standard pressure: 0.2MPa

[Material/Finish]
stainless

[Set contents/accessories]
-
