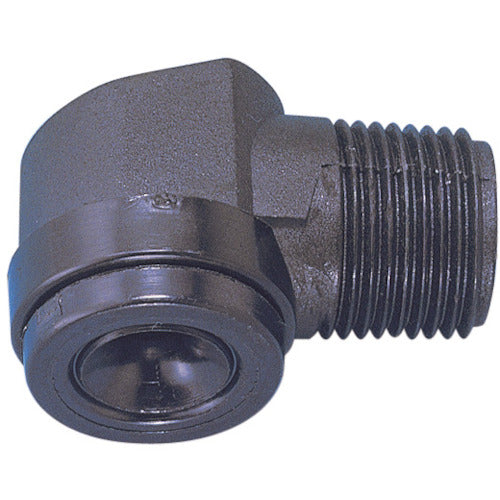

IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series PPS Resin Screw 3/8 Male 85° 3/8MAJP16PPS IKEUCHI
IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series PPS Resin Screw 3/8 Male 85° 3/8MAJP16PPS IKEUCHI
  • Load image into gallery viewer, IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series PPS Resin Screw 3/8 Male 85° 3/8MAJP16PPS IKEUCHI
  • Load image into gallery viewer, IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series PPS Resin Screw 3/8 Male 85° 3/8MAJP16PPS IKEUCHI

IKEUCHI Unclogging Type Charging Cone Nozzle AJP Series PPS Resin Screw 3/8 Male 85° 3/8MAJP16PPS IKEUCHI

[Features]
It is a full cone nozzle with a circular spray pattern and even flow distribution.
This nozzle does not use a swirl element and instead atomizes the liquid through inflow collision, so the diameter through which foreign objects can pass is extremely large.
The liquid is sprayed perpendicular to the flow direction.

[Applications]
For applications where nozzle clogging is a particular concern, such as when using circulating water.
For spraying to clean equipment and to eliminate foam.

【specification】
Spray angle (°): 85 (at 0.2MPa)
Spray amount (L/min): 16.0 (at 0.2MPa)
Screw size: R3/8
Screw dimensions: R3/8

[Specification 2]
Standard pressure: 0.2MPa

[Material/Finish]
Polyphenylene sulfide (PPS)

[Set contents/accessories]
-

【Note】
-
