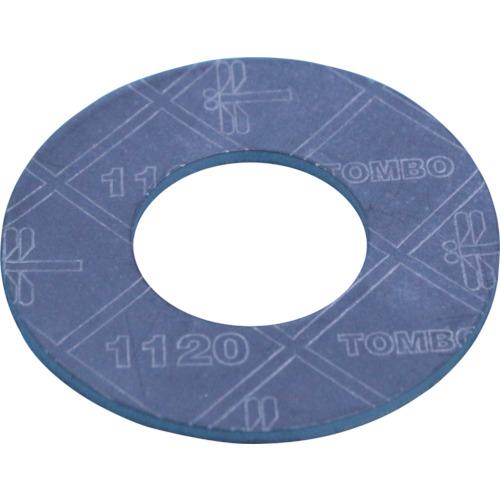

[Features] ● A joint sheet that can be used even under relatively high temperature conditions, with expanded graphite as the main component, and can be used for low-pressure steam. ●Contains expanded graphite, aramid fiber, and NBR rubber as main components, and has excellent sealability, steam resistance, and chemical resistance. ●Since the amount of soluble halogen is small, it can be used for stainless steel flanges. ● JIS S 3200-7:2010 conforms to the leaching test for water supply equipment.
[Applications] ●Various piping such as low-pressure steam, steam return water, cold water, hot water, and air conditioning drain.
[Specification 2] ●Operating temperature range: -200 to 260℃ ●Maintenance-free: 150℃ or less ●Maximum working pressure: Water-based fluid 2-4MPa / Oil-based fluid 1-4MPa / Gas-based fluid 1MPa Maximum pressure value depends on temperature Fluctuates JIS K 6353: 1997 rubber leaching test conformity for water supply
[Caution] ●When using with gas-based fluids, use paste together. ●When tightening the gasket, be careful not to overtighten and damage it, and do not exceed the allowable tightening surface pressure. ●Please inquire about usage confirmation for fluids that require chemical resistance.
