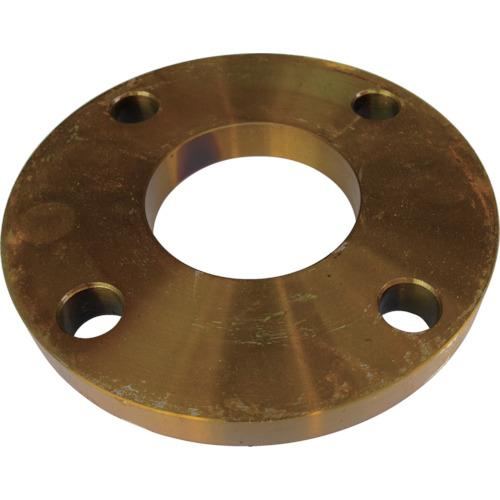

Ishiguro black perforated flange SOP-FF type SS400 equivalent 10K nominal diameter (A) 65

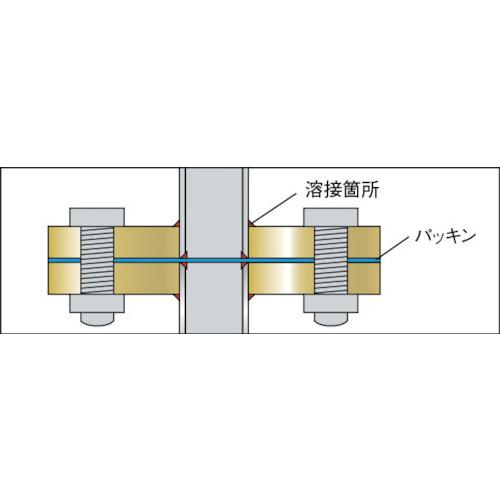

[Features] ●Equivalent to JIS standards. ●It is extremely easy to perform fillet welding and alignment by involving a pipe.

[Use] ● For piping under moderate conditions.

[Specifications] - Inner diameter (mm): 77.1 - Outer diameter (mm): 175 - Thickness (mm): 18 - Number of bolt holes: 4 - Bolt hole diameter (mm): 19 - Working pressure (K): 10

[Specification 2] ● JIS B2220 standard product ● Working pressure: 10K

[Material/Finish] Steel (equivalent to SS400)

[Set contents/accessories]
-

[Caution] ●Antirust varnish (yellow) is applied, but rust may occur.
