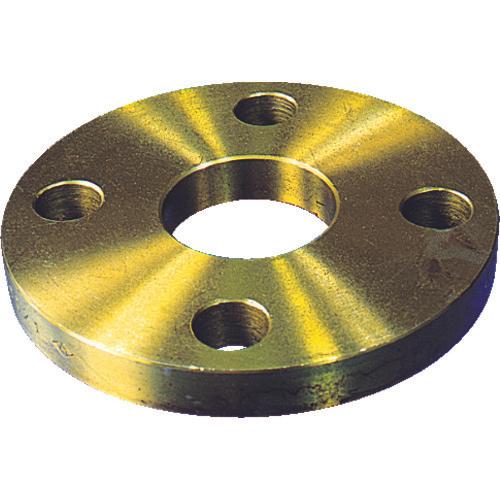

Ishiguro Black Perforated Flange SOP-FF Type SS400 Equivalent 10K Nominal Diameter (A) 15

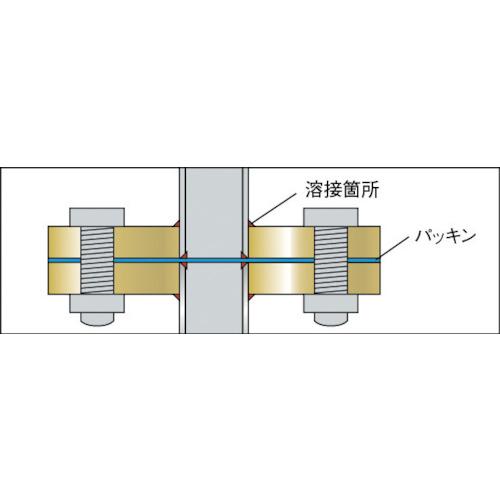

[Features] ●Equivalent to JIS standards. ●It is extremely easy to perform fillet welding and alignment by involving a pipe.

[Use] ● For piping under moderate conditions.

[Specifications] - Inner diameter (mm): 22.2 - Outer diameter (mm): 95 - Thickness (mm): 12 - Number of bolt holes: 4 - Bolt hole diameter (mm): 15 - Working pressure (K): 10

[Specification 2] ● JIS B2220 standard product ● Working pressure: 10K

[Material/Finish] Steel (equivalent to SS400)

[Set contents/accessories]
-

[Caution] ●Antirust varnish (yellow) is applied, but rust may occur.
