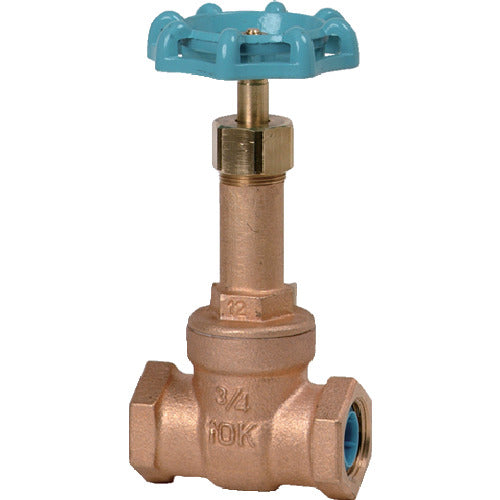

Yamato Valve Gate valve with core ring for water supply 10G-CN 20A 10G-CN 20A YAMATOVALVE

[Features]
An O-ring is attached to the core and combined with the lip structure to create a double seal structure, which is effective in preventing rust over time.

[Applications]
For water supply.

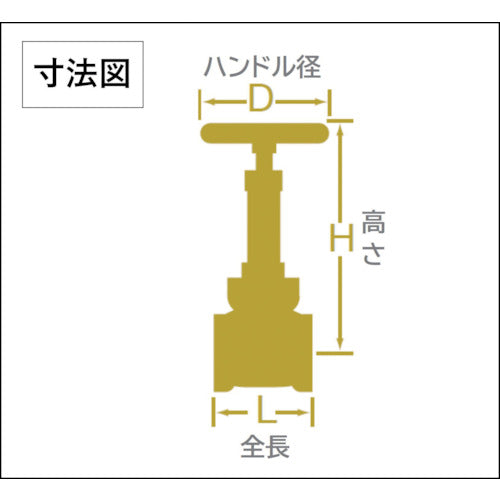

【specification】
Nominal diameter A: 20
Nominal diameter B: 3/4
Total length (mm): 72
Height (mm): 159
Handle diameter D(mm): 70
Maximum allowable pressure (MPa): 1.0MPa (still water below 40℃, pulsating water) Class: 10K

[Specification 2]
Maximum allowable temperature: 40℃
Maximum allowable pressure: 1.0MPa
JV5
Japan Water Works Association certified product
Products that comply with the new leaching standards

[Material/Finish]
Bronze (CAC406)

[Set contents/accessories]
-

【Note】
-
