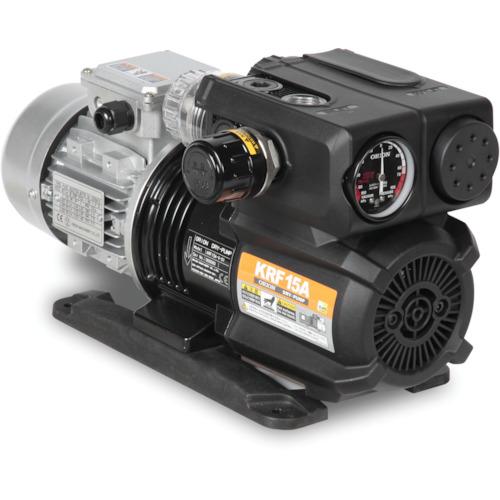

ORION dry pump without thermal protector vacuum specification

[Features] ● Since it is an oil-free type, it does not contain oil, so it does not contaminate the work environment and products with oil even when using a vacuum (vacuum specification) or exhaust use (blower specification). ●Three-phase 200V specification is with CE marking. ●Compliant with RoHS Directive standard. ●It is quieter than the old series. ●Excellent durability due to the use of a special self-lubricating carbon blade.

[Use] ●Printing machine. ●Bookbinding machine. ● Automatic machine. ●Chip mounter. ●Vacuum sources such as packaging machines.

[Specifications] - Exhaust speed (L/min) 50/60Hz: 235/280 - Ultimate pressure (Pa) 50/60Hz: 84 x 10 [[3rd power]] / 86 x 10 [[3rd power]] Intake diameter: Rc3/4 Power supply (V): Three-phase 200 Noise level (dB): 62 Width x length x height (mm): 466 x 249 x 248

[Specification 2] ●No thermal protector ●Vacuum specifications ●One unit supports different voltages

[Material/Finish]
-

[Set Contents/Accessories] - Vacuum controller - Compound gauge

[Caution] ●The design displacement is a theoretical value obtained from the volume. ●It cannot be used at the pump's ultimate pressure. Use it at 60KPa or less.
