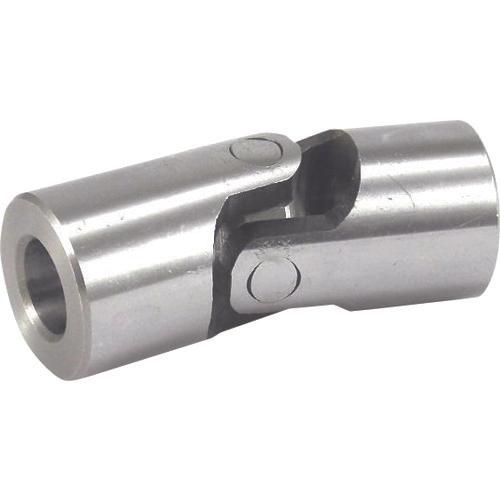

MIYOSHI KIKAI CO.,LTD Universal Joint H-10

[Features]
●It is a product that can conduct conduction transmission at an angle.

[Use]
● For high-precision durability

【specification】
- Inner diameter (mm): 10
- Outer diameter (mm): 20
-Type: Precision type H type
- Shaft insertion effective dimension (mm): 17
- Total length (mm): 56
● Maximum number of revolutions (min-1): 1450
● Maximum transmission capacity (N m): 34

[Specification 2]
● For high-precision durability

[Material/Finish]
●SCM435 and others

[Set contents/accessories]
-

【Note】
*If additional processing is required, please request a separate estimate.
