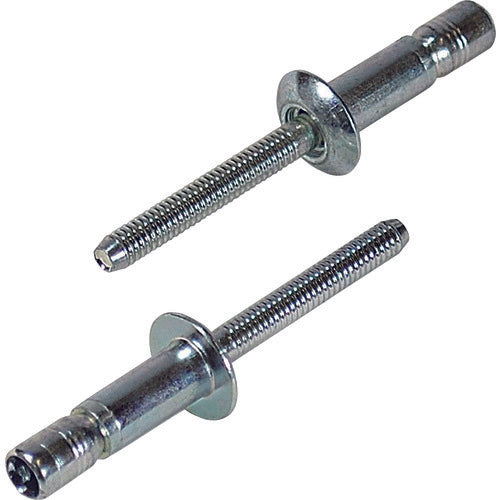

Shrimp high-strength blind rivet S-bolt (round head) Φ6.4/plate thickness 15.9mm (10 pieces included)

[Features] ● Strong pulling force (tightening force), excellent earthquake resistance and airtightness. ●It is a small size that can be used without waste for necessary work. ●Comes in a resin case for convenient storage. ●Because of the wide range (wide range of tightening plate thickness), there is no need to prepare many sizes of rivets.

[Applications] ● Multiple base materials can be fastened from one side with a single action. ●Compared to welding, there are merits in labor saving and productivity improvement.

[Specifications] - Crimp plate thickness (mm): 2.1 - 15.9 - Rivet length (mm): 19.8 - Flange diameter (mm): 13.0 - Rivet diameter (mm): 6.4 - Pilot hole diameter (mm): 6.6 - 7.0 Shear load (N): 11300 Tensile load (N): 9800

[Specification 2] ●Eco-packed

[Material/Finish] - Body: Steel (carbon steel) - Mandrel: Steel (carbon steel)

[Set contents/accessories]
-

[Caution] ● Please consider the working conditions carefully before using. ● Read the instruction manual for the tool (riveter) you will be using before starting work.
