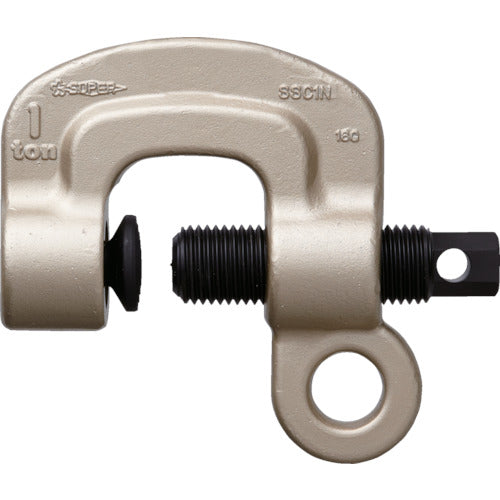

SUPER TOOL screw cam clamp (single eye type)

[Features]●When using for horizontal hanging, tightening work can be done easily because the screw is located on the top. ● The tightening mechanism of the screw and arc-shaped cam (special spring type) ensures that the clamp maintains a secure grip even when no load is applied, and has excellent vibration resistance under load. ●Even if it is attached to the upper H steel beam, it can be easily tightened. ●Clamping is possible even in a relatively narrow gap because the receiving surface on the pad side comes down when hung horizontally. ●Suitable for various tasks such as lifting, hanging, reversing, and pulling.

[Applications] ● Lifting, suspending, pulling, reversing work of steel plates and shaped steel in various industries such as construction, civil engineering, steel, shipbuilding and can manufacturing.

[Specifications] ● Basic working load (t): 0.5 ● Clamping range (mm): 0 to 25 ● Dimensions (mm) D: 22 ● Dimensions (mm) H: 129.5 ● Dimensions (mm) H2: 53 ● Dimensions (mm) ) H3: 91 Dimensions (mm) L: 122

[Specification 2]
-

[Material/Finish] Special alloy steel

[Set Contents/Accessories] Double-ended ratchet wrench (short type): 17 x 21

【Note】
-
