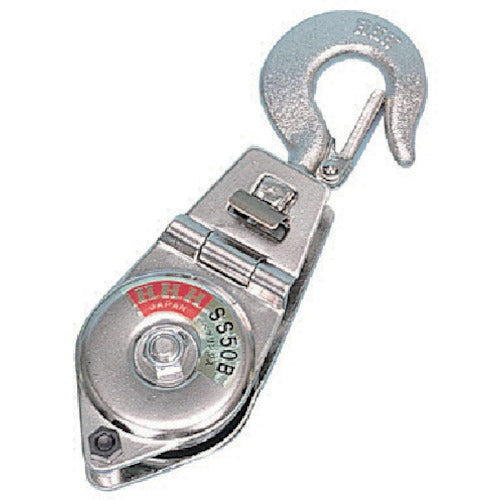

HHH Simple Snatch Hook Type 75mm Bearing Included

[Features]●The side plate opens, so it can be attached even from the middle of the rope. ●Since the sheave contains bearings, rotation is smooth.

[Applications] ● For lifting and pulling luggage, etc., through a rope.

[Specifications] - Basic working load (t): 0.35 - Vehicle diameter (mm): 75 - Maximum use rope diameter (mm): 10 - Number of cars: 1 - Dimensions (mm) A: 240 - Dimensions (mm) B: 85 ● Dimensions (mm) C: 40 ● Working load (kg): 350 ● Working load (kg): 350

[Specification 2] ● No becket ● Snatch type

[Material/Finish] Steel

[Set contents/accessories]
-

[Caution] ●The working load is the value for a movable pulley. When used as a fixed pulley, it is halved.
