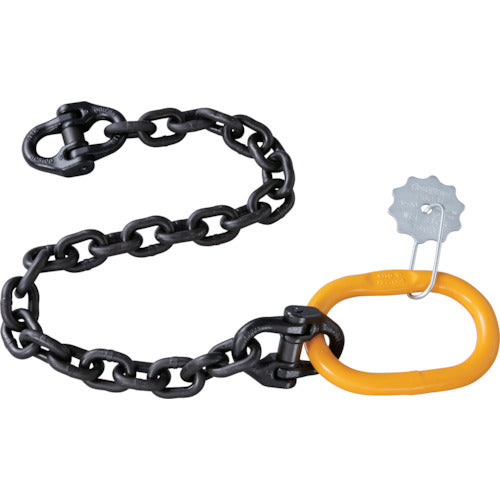

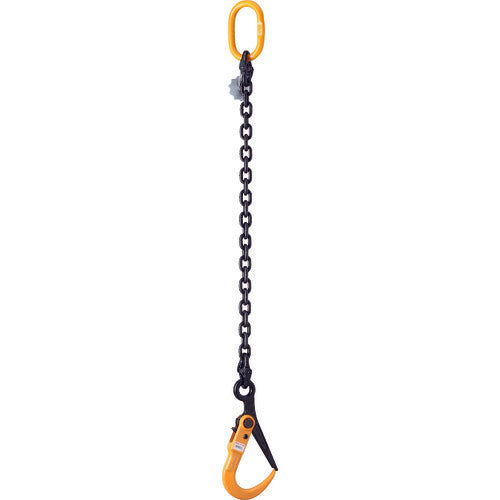

SUPER TOOL lock hook set with SUPER TOOL chain Capacity: 3ton Total length: 1347mm

[Features] ●Equipped with a JIS V class, lightweight and strong chain sling. ●Chain slings can be used safely for a long time compared to wire ropes. ●The chain sling has a management tag that specifies the working load and production number.

[Applications] ● For transportation and construction work of iron plates, and for direct hanging work as a safety hook.

[Specifications] ● Basic working load (t): 3 ● Chain wire diameter (mm): φ10 ● Effective length l (m): 1295 ● Dimensions (mm) C: 105 ● Master link dimensions (mm) a: 75 ● Master Link dimensions (mm) b: 19 ● Dimensions (mm) D: 32 ● Dimensions (mm) H: 339 ● Dimensions (mm) L: 169 ● Dimensions (mm) p: 135 ● Master link dimensions (mm) b: 19 ● Dimension (mm) H: 339 ● Dimension (mm) L: 169 ● Dimension (mm) p: 135 ● Dimension (mm) D: 32
