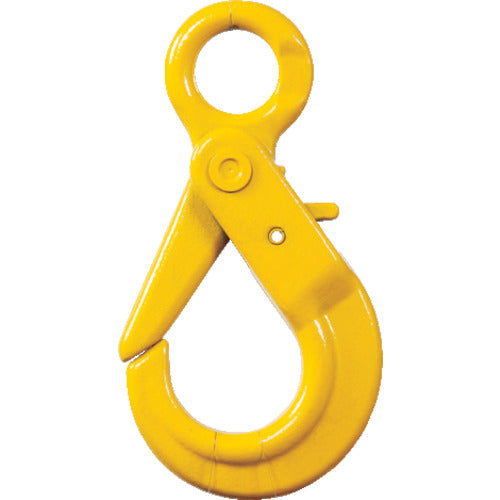

ELEPHANT locking hook 2.5t

[Features]●By locking the latch, it is possible to prevent the latch from coming off, making it safe to use. ●Since the latch opens outward, slinging is easy.

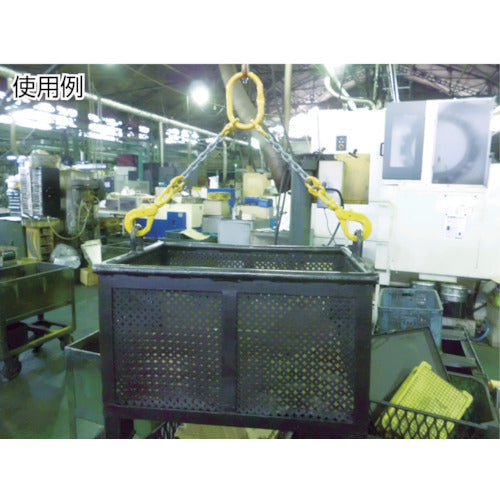

[Applications] ● Latch lock type for safer slinging work.

[Specifications] ● Basic working load (t): 2.5 ● Applicable chain wire diameter (mm): 10 ● Dimensions (mm) M: 47 ● Dimensions (mm) P: 170 ● Dimensions (mm) m: 47 ● Dimensions (mm) )n: 56 ● Dimensions (mm) p: 170 ● Dimensions (mm) s: 28.5 ● Dimensions (mm) t: 24 ● Dimensions (mm) m': 47.0 ● Breaking load (kN): 125 ● Dimensions (mm) b: 15 Dimensions (mm) a: 35

[Specification 2]
-

[Material/Finish] Steel

[Set contents/accessories]
-

【Note】
-
