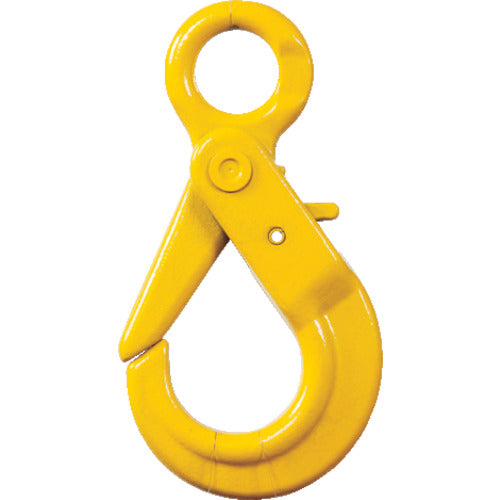

ELEPHANT locking hook 1.0t

[Features]●By locking the latch, it is possible to prevent the latch from coming off, making it safe to use. ●Since the latch opens outward, slinging is easy.

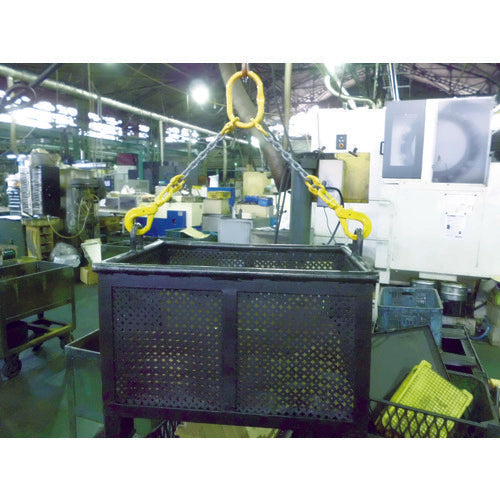

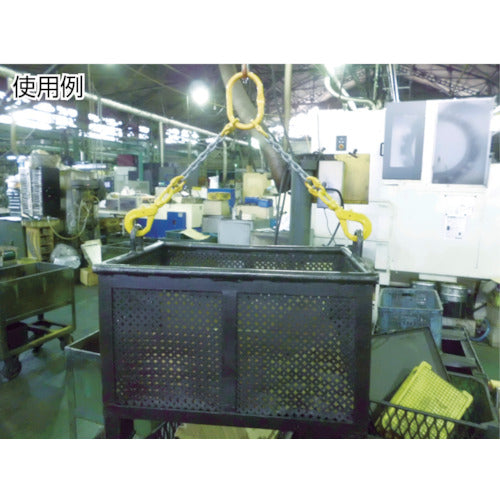

[Applications] ● Latch lock type for safer slinging work.

[Specifications] ● Basic working load (t): 1 ● Applicable chain wire diameter (mm): 6.3 ● Dimensions (mm) M: 29.5 ● Dimensions (mm) P: 113 ● Dimensions (mm) m: 29.5 ● Dimensions (mm) )n: 35 ● Dimensions (mm) p: 113 ● Dimensions (mm) s: 19.5 ● Dimensions (mm) t: 14 ● Dimensions (mm) m': 29.5 ● Breaking load (kN): 50 ● Dimensions (mm) b: 10 Dimensions (mm) a: 25

[Specification 2]
-

[Material/Finish] Steel

[Set contents/accessories]
-

【Note】
-
