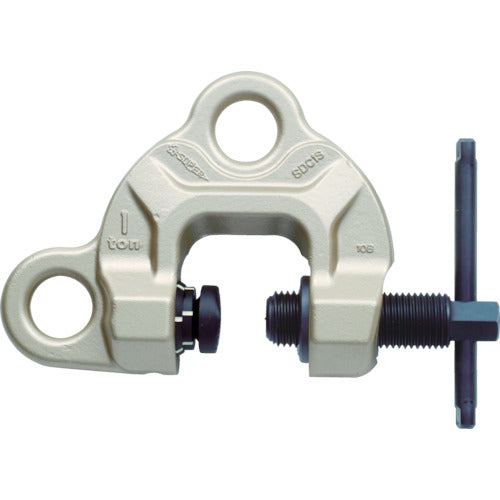

SUPER TOOL screw cam clamp (double eye type) twist cam type

[Features]● Operation of the circular cam can be confirmed by the mark. The mark has excellent visibility due to the phosphorescent coating. ●In proportion to the lifting load, the circular cam tilts to increase the biting contact surface and provide a strong grip. ● There are 2 shackle mounting points vertically and horizontally, so you can select one according to the working conditions. ●The strong spring built into the main body prevents loosening of the screw. ●The circular cam has a mechanism that always returns to its normal state by the force of the spring. ●The main body is made of die-forged special alloy steel and has undergone optimal heat treatment, making it tough and durable.

[Applications] ● Lifting, suspending, horizontal pulling, reversing work of steel plates, shaped steel, etc. in various industries such as civil engineering, construction, steel, shipbuilding, and can manufacturing. ●Ideal for hanging chain blocks and hoists as jigs and for pulling steel materials.

[Specifications] ● Basic working load (t): 2 ● Clamping range (mm): 0 to 40 ● Dimensions (mm) D: 32 ● Dimensions (mm) D2: 36 ● Dimensions (mm) H: 177 ● Dimensions (mm) ) H2: 77 Dimensions (mm) L: 227

[Specification 2]
-

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
