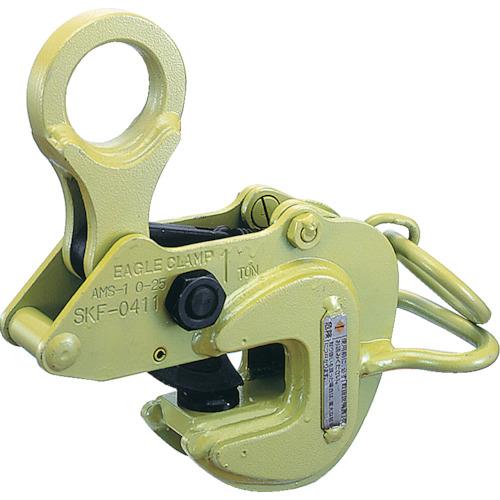

[Features] ● Lightweight, compact, and with a handle for convenient handling. ● Work efficiency has been improved by adopting a large suspension ring. ●It is a clamp for steel frame erection work. ● Equipped with a latch-type locking device (spring-type tightening mechanism) that works reliably.
[Applications] Horizontal lifting of shaped steel (H-shaped steel, I-shaped steel, groove-shaped steel), steel frames, bridges, steel structures, steel plates, steel beams, etc. ●For horizontal slinging, horizontal slinging, erection, transportation, lifting, pulling down (by using a reversing device, etc.), welding, assembly, mounting, press processing, and bending processing.
[Specifications] ● Basic working load (t): 0.6 to 3 ● Clamp range (mm): 3 to 38 ● Dimensions (mm) D: 50 ● Dimensions (mm) H: 324 ● Dimensions (mm) H2: 80 ● Dimensions (mm) L: 255 ● Maximum working load (t): 3 ● Working load (minimum to maximum) (kg): 600 to 3000
[Specification 2] ●Latch-type locking device ●For 2-point hanging ●Manufactured in an ISO9001 certified factory
[Material/Finish] -
[Set contents/accessories] -
[Caution] ● Be sure to use at least 2 points. ●Never lift a load that exceeds the maximum working load of the clamp. ●Be sure to perform inspections before starting work, and do not use clamps that are malfunctioning, deformed, worn, or damaged. ●Be sure to read the instruction manual carefully before use.
