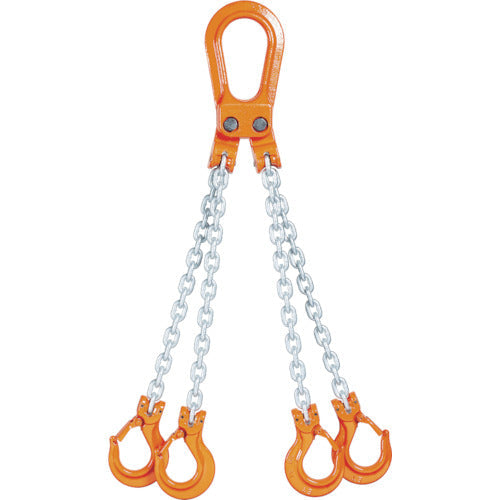

ELEPHANT chain sling (pin type) 4 hanging 5.1t

[Features]
The wide opening of the hook makes slinging work easy.
It has become safer by adopting "Plus V class" load chain. (Safety factor of 5 times or more)
A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Use]
As a slinging tool for suspended loads.

【specification】
Basic working load (t): 5.1
Chain wire diameter (mm): 8.0
Effective length l(m): 1.5
Master link dimensions (mm) a: 80
Sling hook dimensions (mm) g: 114.5
Sling hook dimensions (mm) f: 22
Master link dimensions (mm) b: 22
Sling hook dimensions (mm) e: 29
Sling hook dimensions (mm) c: 37.5
Sling hook dimensions (mm) d: 53

[Specification 2]
Lifting height can be increased

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
Use the hanging angle within 60°.
