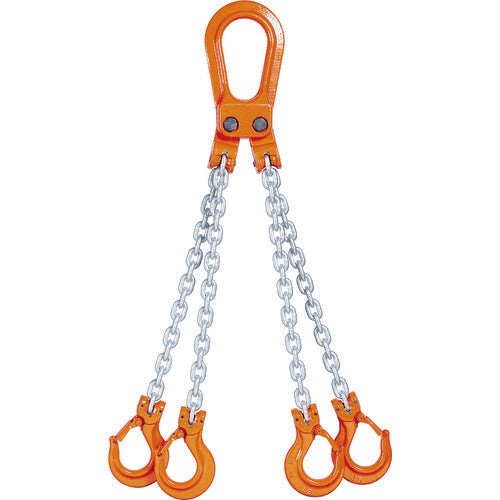

ELEPHANT chain sling 100 (pin type)

[Features]
The wide opening of the hook makes slinging work easy.
It has become safer by adopting "Plus V class" load chain. (Safety factor of 5 times or more)
A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Use]
Cargo handling, transportation lifting work.

【specification】
Basic working load (t): 1.2
Chain wire diameter (mm): 5.0
Effective length l(m): 1.5
Master link dimensions (mm) a: 50
Sling hook dimensions (mm) f: 13
Master link dimensions (mm) b: 14
Sling hook dimensions (mm) e: 16
Sling hook dimensions (mm) c: 23.5
Sling hook dimensions (mm) d: 36
Sling hook dimensions (mm) g: 72.5

[Specification 2]
with latch

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
Use the hanging angle within 60°.
