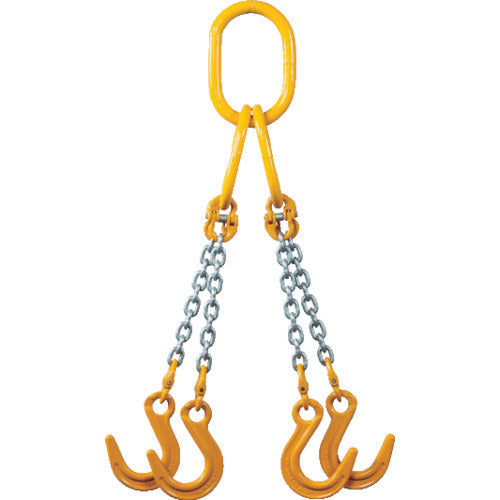

ELEPHANT chain sling 100 (eye type) load 6.4t wire diameter 10.0mmL1.5m

[Features]
Comes with a foundry hook.
It has become safer with the adoption of "Plus V class" load chain. (Safety factor of 5 times or more)
A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Use]
Cargo handling, transportation lifting work.

【specification】
Basic working load (t): 6.4
Chain wire diameter (mm): 10.0
Effective length l(m): 1.5
Master link dimensions (mm) a: 110
Master link dimensions (mm) p: 190
Master link dimensions (mm) a': 95
Foundry hook dimensions (mm) a: 32
Foundry hook dimensions (mm) k: 152
Foundry hook dimensions (mm) n: 73
Foundry hook dimensions (mm) p: 150
Foundry hook dimensions (mm)s: 34
Foundry hook dimensions (mm) b: 15
Foundry hook dimensions (mm) t: 24
Master link dimensions (mm) d: 27
Master link dimensions (mm) l: 350
Master link dimension (mm) a':
Master link dimensions (mm) d': 20
Master link dimension (mm) p': 160

[Specification 2]
big hook

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
-
