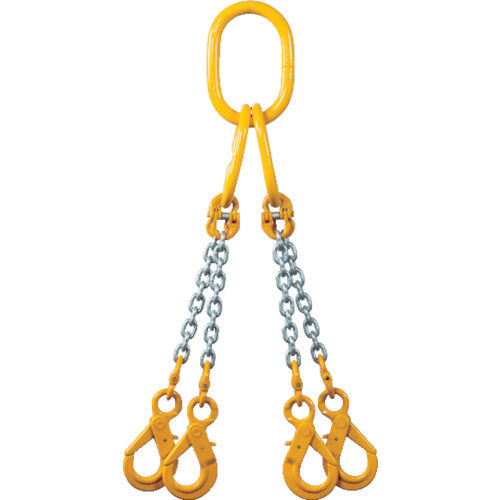

ELEPHANT chain sling 100 (eye type) load 4.1t wire diameter 7.1mm L1.5m

[Features]
With locking hook.
It has become safer with the adoption of "Plus V class" load chain. (Safety factor of 5 times or more)
A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Use]
Cargo handling, transportation lifting work.

【specification】
Basic working load (t): 4.1
Chain wire diameter (mm): 7.1
Effective length l(m): 1.5
Master link dimensions (mm) a: 110
Master link dimensions (mm) p: 160
Master link dimensions (mm) a': 80
Master link dimension (mm) p': 140
Locking hook dimensions (mm) a: 28
Locking hook dimensions (mm) k: 91
Locking hook dimensions (mm) m: 36
Locking hook dimensions (mm) n: 45
Locking hook dimensions (mm) p: 138
Locking hook dimensions (mm) s: 23
Locking hook dimensions (mm) b: 11
Locking hook dimensions (mm) t: 18
Master link dimensions (mm) d: 23
Master link dimensions (mm) l: 300
Master link dimension (mm) a':
Master link dimension (mm) d': 16.5
Master link dimension (mm) p': 140

[Specification 2]
locking hook

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
-
