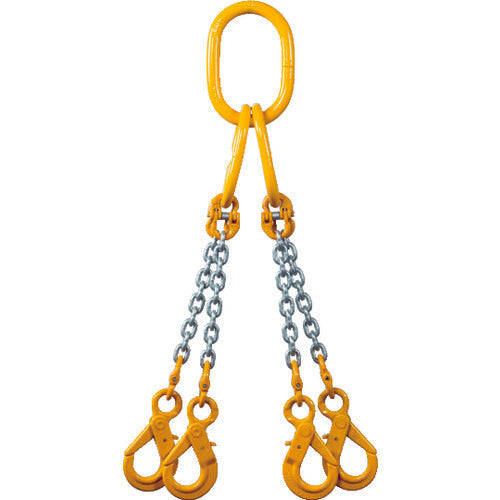

ELEPHANT chain sling 100 (eye type) load 2.5t wire diameter 6.3mm L1.5m

[Features]
With locking hook.
It has become safer with the adoption of "Plus V class" load chain. (Safety factor of 5 times or more)
A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Use]
Cargo handling, transportation lifting work.

【specification】
Basic working load (t): 2.5
Chain wire diameter (mm): 6.3
Effective length l(m): 1.5
Master link dimensions (mm) a: 95
Master link dimensions (mm) p: 160
Master link dimensions (mm) a': 70
Master link dimension (mm) p': 120
Locking hook dimensions (mm) a: 25
Locking hook dimensions (mm) k: 72
Locking hook dimensions (mm) m: 29.5
Locking hook dimensions (mm) n: 35
Locking hook dimensions (mm) p: 113
Locking hook dimensions (mm)s: 19.5
Locking hook dimensions (mm) b: 10
Locking hook dimensions (mm) t: 14
Master link dimensions (mm) d: 20
Master link dimensions (mm) l: 280
Master link dimension (mm) a':
Master link dimensions (mm) d': 14
Master link dimension (mm) p': 120

[Specification 2]
locking hook

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
-
