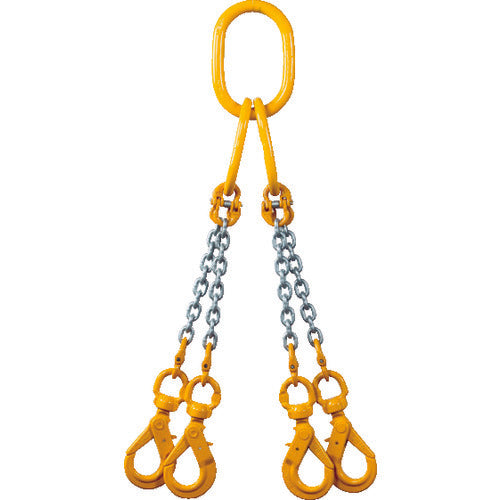

ELEPHANT Chain Sling 100 (Eye Type) Load 2.5t Wire Diameter 6.3mm L1.5m 4-TG-BKE-6.3 ELEPHANT

[Features]
Comes with a swivel hook (with ball bearing).
The adoption of "Plus V class" load chains has made the work safer (safety factor of 5 times or more).
A long service life has been achieved by using a special surface-treated chain that is resistant to harsh operating conditions.

[Applications]
Loading, transporting and lifting work.

【specification】
Basic load capacity (t): 2.5
Chain diameter (mm): 6.3
Effective length l(m): 1.5
Type: 4-stranded
Master link dimensions (mm) a: 95
Master link dimension (mm) a': 70
Master link dimensions (mm) d: 20
Master link dimension (mm) d': 14
Master link dimensions (mm): 280
Master link dimensions (mm) p: 160
Master link dimensions (mm) p': 120
Swivel hook dimensions (mm) a: 30
Swivel hook dimensions (mm) b: 10
Swivel hook dimensions (mm) c: 30
Swivel hook dimensions (mm) k: 72
Swivel hook dimensions (mm): 29.5
Swivel hook dimensions (mm) n: 35
Swivel hook dimensions (mm) p: 145
Swivel hook dimensions (mm): 19.5
Swivel hook dimensions (mm) t: 14
Master link dimension (mm) d': 14
Master link dimensions (mm) p': 120
Master link dimension (mm) a': 70

[Specification 2]
Locking hook (with ball bearing)

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
-
