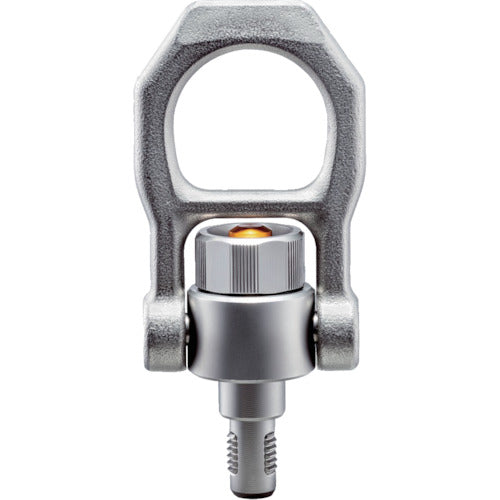

HALDER Thread-clamp lifting pin, swivel type, stainless steel, 22353.101 HALDER

[Features]
This hanging bracket can be easily attached and detached with the push of a button.
Reduces eyebolt installation time by 85%.
The shackle rotates 360 degrees.
You can insert the pin into the screw hole while pressing the button.

[Applications]
A substitute for jigs, molds, and eye bolts.

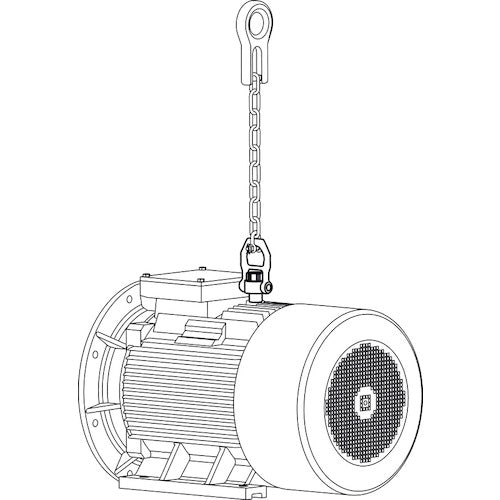

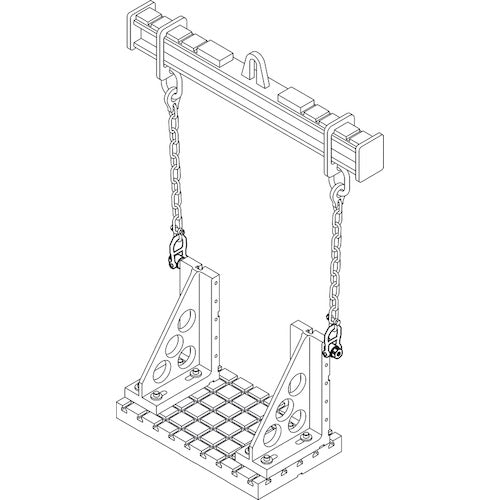

Transportation of products, parts, jigs, and molds.
Substitute for eye bolts.

【specification】
Working load (kN): 3.9
Bolt size: M10
Neck length (mm): 20
Thickness(mm):38
Load capacity F1(kN): 3.9
Length(mm):144
Width(mm):68
Thread diameter: M10

[Specification 2]
Horizontal hanging possible
Safety factor 5

[Material/Finish]
Pin/shackle: Stainless steel Spring: Stainless steel

[Set contents/accessories]
-

【Note】
Insert the pin all the way down and screw it in all the way before using.
After inserting the pin, please check that the orange button has returned to its original position and that the screw part is completely clamped before using.
If the screw is not completely clamped, the workpiece may fall.
The working load is the allowable vertical load.
Use in steel threaded holes only.
