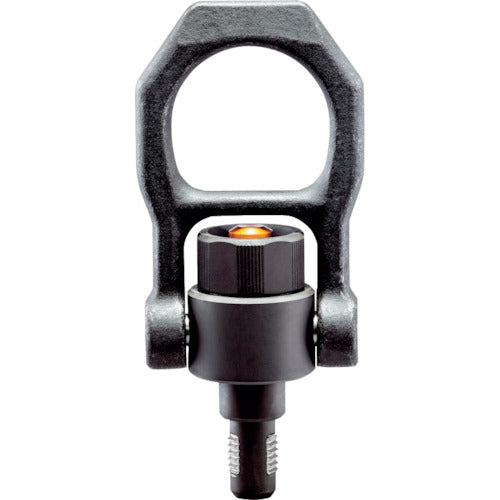

HALDER Thread Clamp Lifting Pin, Swivel Type, Heat Treatment Steel 22353.0024 HALDER

[Features]
This hanging bracket can be easily attached and detached with the push of a button.
Reduces eyebolt installation time by 85%.
The shackle rotates 360 degrees.
You can insert the pin into the screw hole while pressing the button.

[Applications]
Tasks that require frequent attachment and detachment of eye bolts.

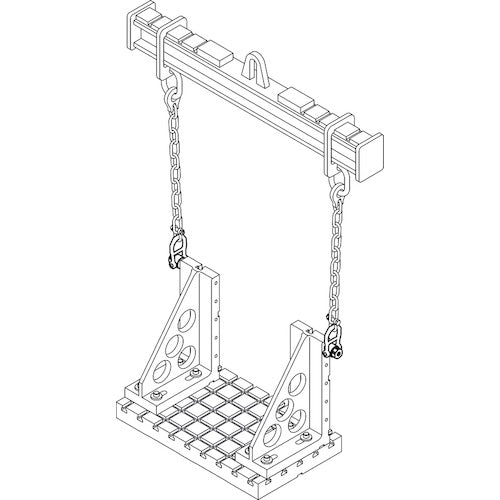

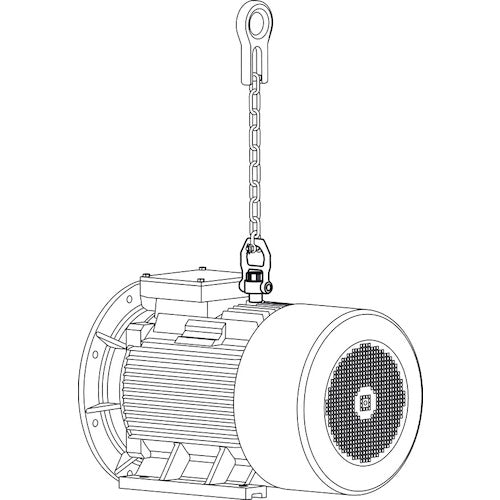

Transportation of products, parts, jigs, and molds.
Substitute for eye bolts.

【specification】
Working load (kN): 18.5
Bolt size: M24
Neck length (mm): 36
Thickness(mm):59
Load capacity F1(kN): 18.5
Length (mm): 209
Width(mm):102
Thread diameter: M24

[Specification 2]
A hanging device that can be quickly and easily attached and detached with the push of a button
Lifting tool, safety factor 5, shackle rotation type, can be hung horizontally, instead of eye bolt

[Material/Finish]
Pin/shackle: Heat-treated steel Spring: Stainless steel

[Set contents/accessories]
-

【Note】
Insert the pin all the way down and screw it in all the way before using.
After inserting the pin, please check that the orange button has returned to its original position and that the screw part is completely clamped before using.
If the screw is not completely clamped, the workpiece may fall.
The working load is the allowable vertical load.
Use only in steel threaded holes. Above 150 degrees, the allowable load is reduced by 23% in proportion to the temperature.
