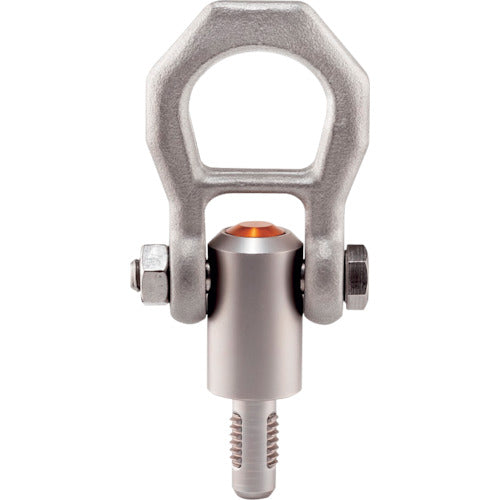

HALDER thread-clamp lifting pin stainless steel 22352.102 HALDER

[Features]
This hanging bracket can be easily attached and detached with the push of a button.
Reduces eyebolt installation time by 85%.

[Applications]
Tasks that require frequent attachment and detachment of eye bolts.
Transportation of products, parts, jigs, and molds.
Substitute for eye bolts.

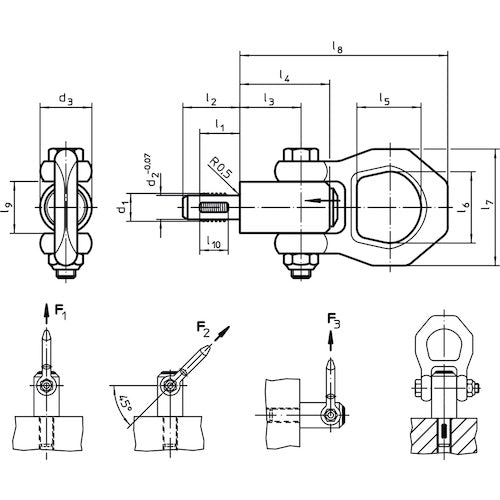

【specification】
Load capacity (kN): 10
Bolt size: M20
Total length (mm): 144
Neck length (mm): 30
Thickness(mm):30
Thread diameter: M20
Load capacity F1(kN): 10
Length(mm):144
Width(mm):56

[Specification 2]
A hanging device that can be quickly and easily attached and detached with the push of a button
Lifting device, safety factor 5, instead of eye bolt

[Material/Finish]
Pin shackle: Stainless steel
Spring: Stainless steel
Push button: Aluminum (orange oxide coating)

[Set contents/accessories]
-

【Note】
Insert the pin all the way down and screw it in all the way before using.
After inserting the pin, please check that the orange button has returned to its original position and that the screw part is completely clamped before using.
If the screw is not completely clamped, the workpiece may fall.
Please be sure to read the instruction manual before use.
The load capacity F1 (kN) is the value in the vertical tensile direction.
