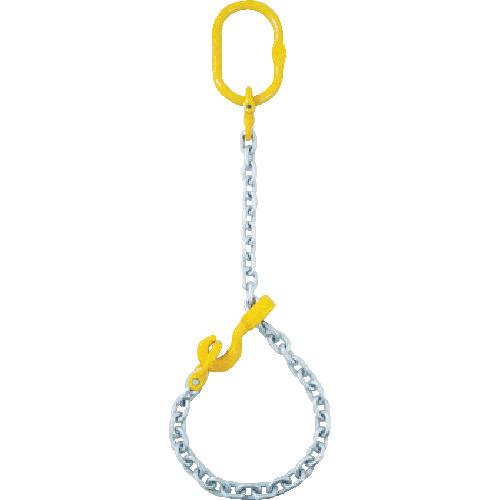

ELEPHANT chain sling 100 (eye type) load 4.4t wire diameter 16.0mmL2.5m

[Features] ●Can be used for reversing steel materials. ●It has become safer with the adoption of “Plus V class” load chain. (Safety factor of 5 times or more) ●A long service life has been achieved by adopting a special surface treatment chain that is resistant to harsh operating conditions.

[Applications] ● Cargo handling, transportation and lifting work.

[Specifications] ● Basic working load (t): 4.4 ● Chain wire diameter (mm): 16.0 ● Effective length l (m): 2.5 ● Master link dimensions (mm) a: 105 ● Master link dimensions (mm) p: 180 ● Chalk hook dimensions (mm) a: 67 ● Chalk hook dimensions (mm) k: 98 ● Chalk hook dimensions (mm) m: 31 ● Chalk hook dimensions (mm) n: 32 ● Chalk hook dimensions (mm) p: 185 ● Master link dimensions (mm) b: 163 ● Master link dimensions (mm) d: 29 ● Chalk hook dimensions (mm) b: 52 ● Chalk hook dimensions (mm) g: 64

[Specification 2] Chalk hanging type

[Material/Finish] Steel

[Set contents/accessories]
-

【Note】
-
